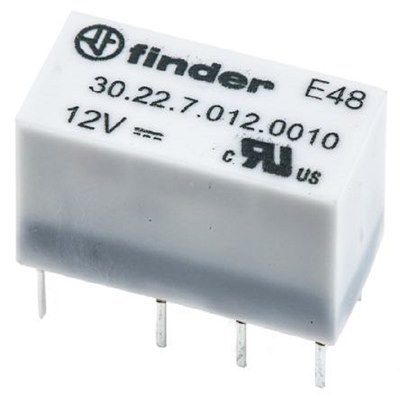

Finder 30.22 Relays DPDT 1.25A High Sensitivity
by Finder
Finder 30 series (BT51W) double pole changeover IP67 sealed PCB relay, as BT47W type but incorporating a 200mW high sensitivity coil. UL & CSA approved.
| Contact form: | 2C (DPDT) |
| Contact rating: | 1.25A @ 250VAC |
| Contact material: | AgNi+Au |
| Coil operating range: | 70-150% |
| Operate/release: | 10ms |
| Coil consumption: | 200mW |
| Temperature range: | -40°C to +85°C |
| Dimensions: | 20.3L x 11.4H x 10.4W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-821 | 820-824 | 820-826 |
|---|---|---|---|
|
Finder Part no.
|
30.22.7.005.0010 | 30.22.7.012.0010 | 30.22.7.024.0020 |
|
Switching capacity
|
2A | 2A | 2A |
|
Coil resistance
|
125Ω | 720Ω | 2880Ω |
|
Coil Voltage
|
5VDC | 12VDC | 24VDC |
