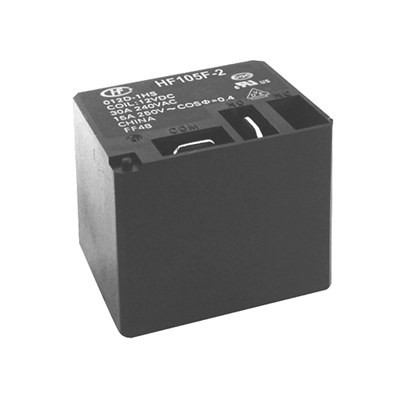

Hongfa Miniature Power Relays HF105F-2 - SPCO 20A
by Hongfa
IP67Sealed construction power relay. Class F insulation. 900mW power consumption.
UL & VDE approvedRoHS compliant
| Contact form: | 1C (SPDT) |
| Contact rating: | 20A 240VAC/24VDC |
| Contact material: | AgSnO2 |
| Operate/release: | 15ms/10ms |
| Coil consumption: | 900mW |
| Mechanical life: | 1x107 operations |
| Temperature range: | -55°C to +105°C |
| Dimensions: | 32.4L x 27.8H x 27.5W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 821-342 | 821-344 |
|---|---|---|
|
Max. Switching Capacity
|
4800VA/560W | 4800VA/560W |
|
Coil Resistance
|
155 ohms | 660 ohms |
|
Coil Voltage
|
12VDC | 24VDC |
