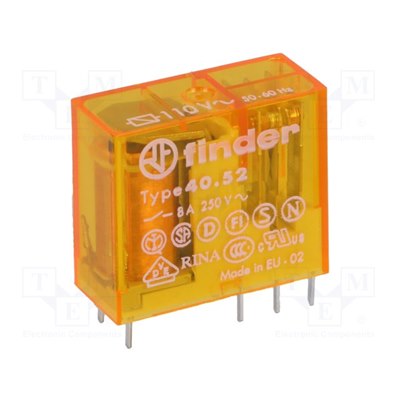

Finder 40.52 Relays - DPCO 8A
by Finder
Miniature double pole changeover PCB power relays wih 6kV-8mm coil-contact isolation to VDE0700. Flux-tight base with pre-tinned terminals. Dustproof IP40 case.
| Contact form: | 2C (DPDT) |
| Contact rating: | 8A 250VAC/30VDC |
| Contact material: | AgNi |
| Coil operating range: | 70-150% |
| Operate/release: | 7ms/3ms |
| Temperature range: | -40°C to +85°C |
| Power consumption: | 500mW |
| Dimensions: | 29L x 25.5H x 12.4W |
UL, CSA, VDE, BEA and all other approvals listed below.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-055 | 820-060 | 820-065 | 821-400 |
|---|---|---|---|---|
|
Coil Voltage
|
6VDC | 12VDC | 24VDC | 110VAC |
|
Coil Resistance
|
75Ω | 300Ω | 1200Ω | 6.9 kΩ |
|
Switching capacity
|
2000VA | 2000VA | 2000VA | 2000VA |
|
Finder Part no.
|
40.52.7.006.0000 | 40.52.7.012.0000 | 40.52.7.024.0000 | 40.52.8.110.0000 |
