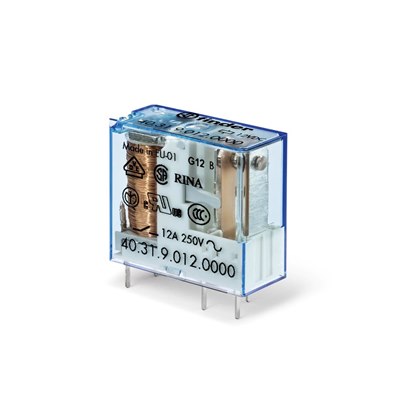

Finder 40.31 Relay 10A 24VDC 40.31.7.024.0000
by Finder
Miniature single pole changeover PCB power relay, featuring 6kV-8mm coil-contact isolation to VDE0700. Flux-tight base with pre-tinned terminals. UL, CSA, VDE, BEAB, SEMKO, DEMKO, IMQ approved.RoHS compliant
| Contact form: | 1C (SPDT) |
| Contact rating: | 10A 250VAC/30VDC |
| Contact material: | AgNi. |
| Coil operating range: | DC types 75-150% |
| AC types 80-110% | |
| Operate/release: | 10ms/10ms |
| Temperature range: | -40°C to +85°C |
| Power consumption: | 6-24VDC: 650mW |
| 110-240VAC: 1200mW | |
| Dimensions: | 29L x 25.5H x 12.4W |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-050 |
|---|---|
|
Finder Part no.
|
40.31.7.024.0000 |
|
Switching capacity
|
300W/2500VA |
|
Coil resistance
|
1200Ω |
|
Coil Voltage
|
24VDC |
