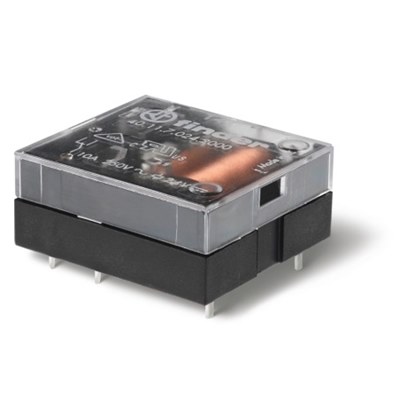

Finder 40.11 Relays - Low-profile SPCO 10A
by Finder
Miniature low-profile single pole changeover PCB power relays wih 6kV-8mm coil-contact isolation to VDE 0700. Flux-tight base with pre-tinned terminals.
| Contact form: | 1C (SPDT) |
| Contact rating: | 10A 250VAC |
| Contact material: | AgCdO |
| Coil operating range: | 73-175% |
| Operate/release: | 12ms/4ms |
| Temperature range: | -40°C to +70°C |
| Power consumption: | 500mW |
| Min. switching load | 300mW |
| Dimensions: | 28.5L x 26.3W x 12.7H |
UL and VDE approved.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-170 | 820-172 |
|---|---|---|
|
Finder Part no.
|
40.11.7.012.2000 | 40.11.7.024.2000 |
|
Switching capacity
|
2500VA | 2500VA |
|
Coil resistance
|
300Ω | 1200Ω |
|
Coil Voltage
|
12VDC | 24VDC |
