Finder 40 Series Plug In Relay DIN Rail Sockets
by Finder

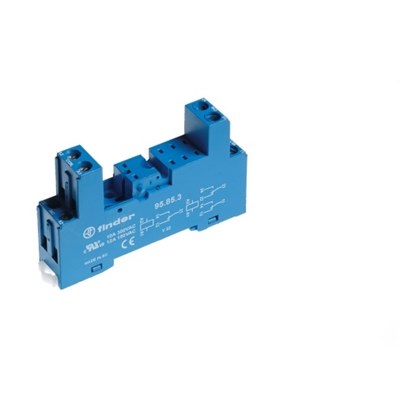

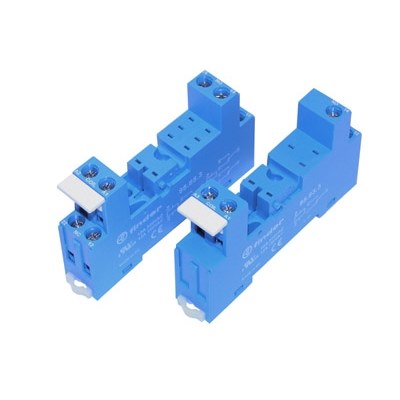

Finder 35mm DIN rail mounting bases for 40 series SPCO and DPCO relays. 5 pin base 820-538 is designed for use with Finder 40.31 series SPCO relay, 8 pin base for use with Finder 40-52 & 40.61 series DPCO relays. Metal retaining clip included.
Screw terminals, nickel plated contacts, rated 10A 250VAC. Operating temp. range -40 to +70°C. IP20 protection category.
Body material Self-extinguishing PPE. Contacts tin-plated brass.
UL & CE approved.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-538 | 820-540 |
|---|---|---|
|
Description
|
5 pin base+clip for 40.31 series | 8 pin base+clip for 40.52/40.61 series |
