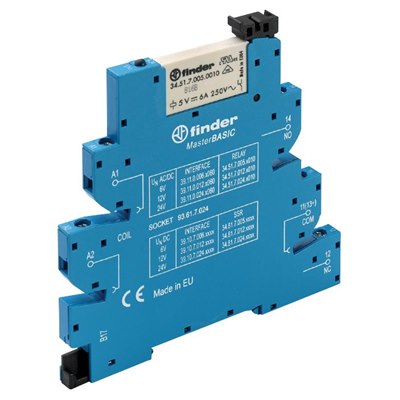

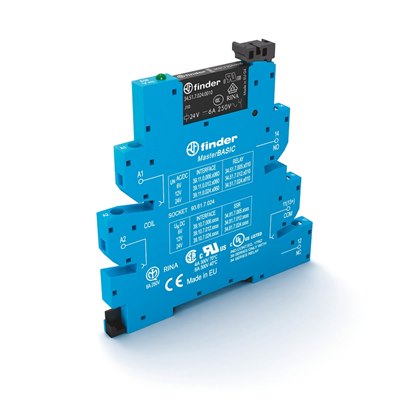

Finder 39.11.8.230.0060 Relay Module 6A
by Finder
- Space saving 6.2mm wide
- Connections for 16-way jumper link
- Integral coil indication and protection circuit
- Secure retention and easy ejection by plastic clip
- Dual screw head (blade+cross) terminals and Push-in terminal version
- 35mm DIN rail mounting
- MasterBasic- for general use in any type of system
- EMR; 6 to 24 and 124V AC/DC, 230V AC supply
- For general interface use in any type of system and application
- Can be used for input interface applications between auxiliary contacts, sensors etc. and controllers, PLC's or motors or for output interface between PLC's controllers and relays, solenoids etc.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 820-914 |
|---|---|
|
Dims (mm)
|
85 x 6.2 x 87mm |
|
Finder Part no.
|
39.11.8.230.0060 |
|
Coil Voltage
|
230VAC |
