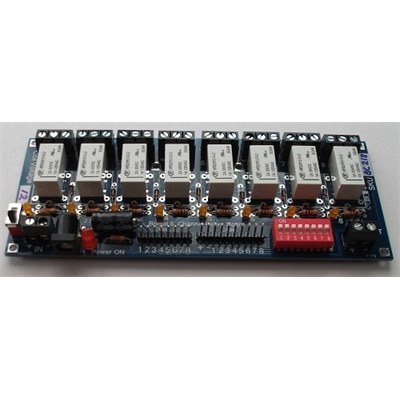

BC218 Relay Board
8 Latching Relays with 9 to 15vDC trigger levels. The relay board is powered by
9 to 12vDC from an external source via wired terminals.
The relay board can be switched ON & OFF from the on-board slide switch. The amber LED is only ON when there is power to Coil 1 of the
relay.
Specification:
Input supply 12 VDC @ 150 mA
Current Rating: Standby 7mA,
Full On (all 8 Relays) 240mA
Operate /4ms
Release Time /3ms
Relay specification 2A @ 30 vDC,
Screw terminal connector for easy relay output and aux power connection
View product specifications
9 to 12vDC from an external source via wired terminals.
The relay board can be switched ON & OFF from the on-board slide switch. The amber LED is only ON when there is power to Coil 1 of the
relay.
Specification:
Input supply 12 VDC @ 150 mA
Current Rating: Standby 7mA,
Full On (all 8 Relays) 240mA
Operate /4ms
Release Time /3ms
Relay specification 2A @ 30 vDC,
Screw terminal connector for easy relay output and aux power connection
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 446-011 |
|---|---|
|
Description
|
BC218 Relay Board 8 Way 148mm x 60mm |
