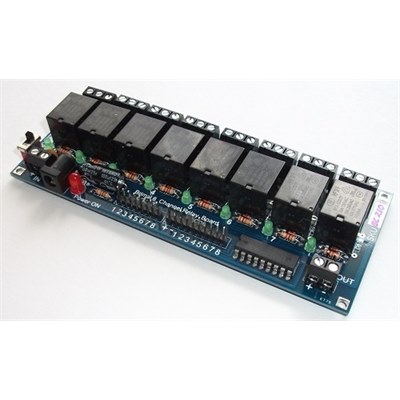

BC210 Relay Board 8 Way

8 Relay Module is a simple and convenient way to interface 8 relays for switching application in your project.
Input voltage level supports TTL as well as CMOS.
The module has anti-interference ability, trigger current is only 1mA.
A peak load current rating of 600mA (500mA continuous) and can withstand at least 50V in the off state.
The module has built-in current limiting resistor can be used directly with positive voltage control.

Specification:
Input supply 12 VDC @ 336 mA
Current Rating: Standby 7mA,
Full On (all 8 Relays) 126mA
Relay specification 10 A @ 230 VAC
Trigger level 2 ~ 15 VDC (negative rail)
Screw terminal connector for easy relay output and aux power connection
