40mm x 10mm 5V DC Fan
by Sunon
A range of low voltage DC Brushless fans utilising patented brushless motor design and precision oil impregnated sintered sleeve bearing system for superior performance and reliability. The motors wound bobbin construction provides superior insulation properties, increased dielectric strength, and improved performance over axial type fans due to the smaller hub which permits use of larger fan blades. All models incorporate reverse polarity protection. Injection moulded non-flammable black thermoplastic frames and impellers to UL94V-0. Operating temperature -10 to +70°C. Life expectancy @ 60°C >40,000 hours. UL, TUV & CE approved
RoHS compliant
| Order Code | Voltage D.C. | Dimensions (HxWxDmm) | Power Watts | Airflow cf/m | Speed RPM | Noise (dba@1m) | Sunon Ref. (SEE BELOW) |
| 452-006 | 5V | 40x40x10 | 1.18 | 7 | 5800 | 27.0 | EB40100S2-000U-999 |

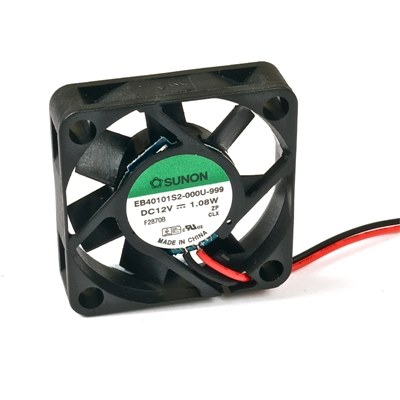

| 452-010 | 12V | 40x40x10 | 1.08 | 7.0 | 5800 | 27.0 | EB40101S2-000U-999 |
| 452-011 | 12V | 40x40x20 | 0.76 | 7.7 | 6200 | 21.0 | EB40201S2-000U-999 |
| 452-015 | 12V | 50x50x15 | 1.0 | 13 | 4700 | 29.0 | KD1205PHS2-GN4.C1500 |
| 452-017 | 12V | 60x60x15 | 1.1 | 18 | 3800 | 31.0 | KDE1206PHS2-H |
| 452-025 | 12V | 60x60x25 | 1.62 | 23.5 | 4500 | 33.5 | EB60251S1-000U-999 |
| 452-031 | 12V | 80x80x25 | 1.7 | 41 | 3200 | 33 | EE80251S1-H |
| 452-038 | 12V | 92x92x25 | 2.0 | 51.5 | 3000 | 34 | ME92251V1-000U-A99 |
