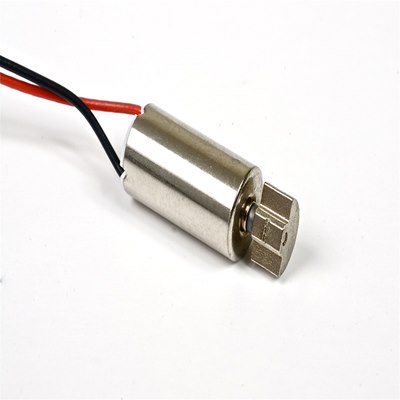

Miniature Vibration Motor
Miniature vibration motor measuring only 12mm long x 6mm diameter. Coreless motor design, rated at 3V nominal. Originally designed for silent alert functions in mobile phones and pager, these motors have since found many additional applications within tools, robotics, control sticks and various alert functions in hand held equipment.
Pre-wired with red & black leads 90mm.
Dimensions: L: 12mm. Diameter: 6mm
Rated voltage: 3.0VDC
Operating range: 1.7-3.6VDC
Rated speed: 14000 RPM (±2000 RPM)
Vibration amplitude: 1.5
Starting voltage: 1.7V max.
Rated current: 75mA
Stall current: 140mA max.
Weight: 1.85g
View product specifications
Pre-wired with red & black leads 90mm.
Dimensions: L: 12mm. Diameter: 6mm
Rated voltage: 3.0VDC
Operating range: 1.7-3.6VDC
Rated speed: 14000 RPM (±2000 RPM)
Vibration amplitude: 1.5
Starting voltage: 1.7V max.
Rated current: 75mA
Stall current: 140mA max.
Weight: 1.85g
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 450-007 |
|---|---|
|
Approx Weight
|
2.2g |
|
Model
|
VM6ZK273 |
|
Operating Range
|
1.7-3.6V |
