Miniature PCB Vibration Motor

Scroll Down for Pricing Options
Min. 3.0V vibration motor
Roll over or select images to enlarge

Miniature PCB Vibration Motor

Scroll Down for Pricing Options

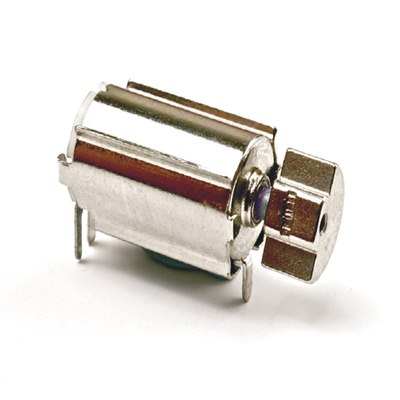

Miniature PCB mounting vibration motor measuring only 10mm x 6mm.
Coreless motor design, rated at 1.3V nominal. Applications include mobile phones, pagers, robotics,
control sticks and various alert functions in hand held equipment.

Dimensions: L: 10mm (15mm inc counterweight). Diameter: 6mm
Rated voltage: 1.3VDC
Operating range: 0.8-3VDC
No-load speed: 15000 RPM (±20%0 RPM)
Load speed: 8500 RPM (±15% RPM)
Vibration amplitude: 2.5
Startup voltage: 0.8V min.
Load current: 40mA
Stall current: 80mA max.
Weight: 1.9g

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 450-008
Approx Weight
1.9g
Model
FB612
Operating Range
0.8-3.0V
