Geared Motors - 970D Fixed ratio
by MFA Como

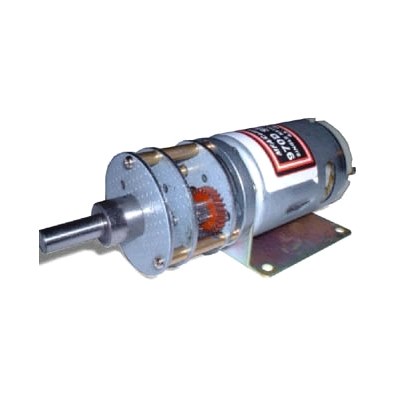

970D series heavy duty geared motors utilising high quality S54 size motor.
All steel 35mm gearbox with bronze output bearings, enabling very high torque transfer.
Mounted on 1mm thickness plated steel bracket. Designed for heavy duty industrial and model applications.
Available in three ratio options, 6:1, 47:1 & 750:1, with a voltage range of 4.5-15.0VDC.
Weight 250g.approx. Dimension. O/A Dia: 39.3mm Shaft dia 5.5 - with flat. Shaft length 15mm.
MFA Como 970D seriesRoHS compliant
Model | Reduction Table (RPM) | Rated tolerance torque | Rotation (Clockwise/ Anti-clockwise) |
Gear ratio | 6.0V | 9.0V | 12.0V | 15.0V | |||
450-335 | 6:1 | 1050 | 1700 | 2150 | 395 | 1.0Kg-cm | ACW |
450-338 | 47:1 | 144 | 216 | 350 | 132 | 3.0Kg-cm | ACW |
450-340 | 750:1 | 9 | 14 | 20 | 19 | 6.0Kg-cm | CW |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 450-335 | 450-338 | 450-340 |
|---|---|---|---|
|
Description
|
6:1 ratio (970D61) | 47:1 ratio (970D471) | 750:1 ratio (970D7501) |
