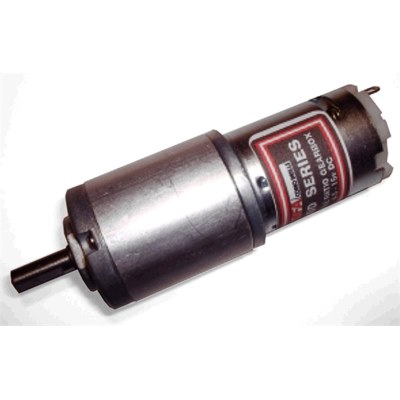

Geared Motors - 940D Epicyclic
940D series heavy duty geared motors utilising high quality S38 size motor. All steel 32mm planetry (epicyclic) gearbox with bronze output bearings permits size and weight savings, and can provide efficiency above 90% and very high torque transfer. Designed for heavy duty industrial and model applications. Available in three ratio options, 5:1, 100:1 & 516:1, with a voltage range of 4.5-15.0VDC.
Weight 167-239g. Dimension. O/A Dia: 32mm Shaft dia. 5.5 - with flat. Shaft length 17mm.
MFA Como 940D seriesRoHS compliant
Model | Reduction Table (RPM) | Rated tolerance torque | Rotation (Clockwise/ Anti-clockwise) |
Gear ratio | 6.0V | 9.0V | 12.0V | 15.0V | |||
450-345 | 5:1 | 1000 | 1600 | 2150 | 2800 | 2.0Kg-cm | CW/ACW |
450-347 | 100:1 | 50 | 77 | 103 | 134 | 12.0Kg-cm | CW/ACW |
450-349 | 516:1 | 8.5 | 14 | 19 | 25 | 12.0Kg-cm | CW/ACW |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 450-345 | 450-347 | 450-349 |
|---|---|---|---|
|
Description
|
5:1 ratio (940D51) | 100:1 ratio (940D1001) | 516:1 ratio (940D5161) |
