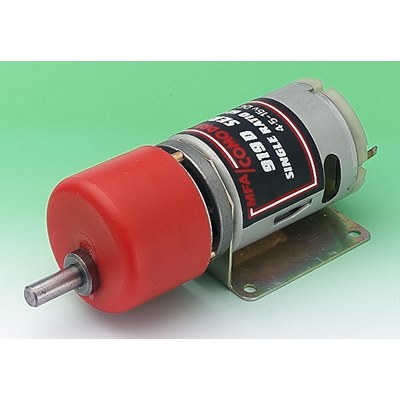

Geared Motors - 919D Fixed ratio
by MFA Como
919D series medium duty geared motors utilising high quality S54 size motor. All steel 35.5mm gearbox with bronze output bearings, enabling very high torque transfer. Mounted on 1mm thickness plated steel bracket. Designed for heavy duty industrial and model applications. Available in three ratio options, 50:1, 148:1 & 810:1, with a voltage range of 4.5-15.0VDC.
Weight 255g. Dimension. L:94mm Dia: 36mm Shaft dia. 5.98mm - with flat. Shaft length 17mm. MFA Como 919D seriesRoHS compliant
Model | Reduction (RPM) | Stall torque |
Gear ratio | 6.0V | 9.0V | 12.0V | 15.0V | 6.0V | 12.0V | |
450-330 | 50:1 | 158 | 237 | 316 | 395 | 33.5Kg-cm | 50Kg-cm |
450-320 | 148:1 | 53 | 80 | 106 | 132 | 99.1Kg-cm | 148Kg-cm |
450-325 | 810:1 | 10 | 15 | 20 | 25 | 542Kg-cm | 810Kg-cm |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 450-330 | 450-320 | 450-325 |
|---|---|---|---|
|
Description
|
Industrial Geared Motor 50:1 ratio | Industrial Geared Motor 148:1 ratio | Industrial Geared Motor 810:1 ratio |
