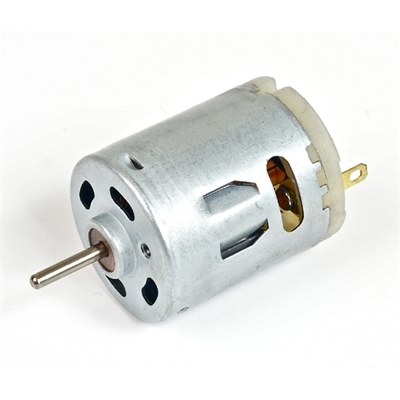

S365 (MM36) High Power 12VDC motor
High torque 5 pole DC motor with wide operating range 12-24V. Suitable for water pumps, robotics etc.
Rotation is counter-clockwise as viewed from shaft end.
Dimensions: L: 32.5 (exc. shaft) x 27.5mm dia.
Shaft: 12.8mm long x 2.3 dia.
Weight 52g approx.
Mounting holes 2 x M2.6 x 0.45 tapped.
View product specifications
Rotation is counter-clockwise as viewed from shaft end.
Dimensions: L: 32.5 (exc. shaft) x 27.5mm dia.
Shaft: 12.8mm long x 2.3 dia.
Weight 52g approx.
Mounting holes 2 x M2.6 x 0.45 tapped.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 450-025 |
|---|---|
|
Approx Weight
|
52 g |
|
Model
|
S365-B |
|
Operating Range
|
12-24V |
