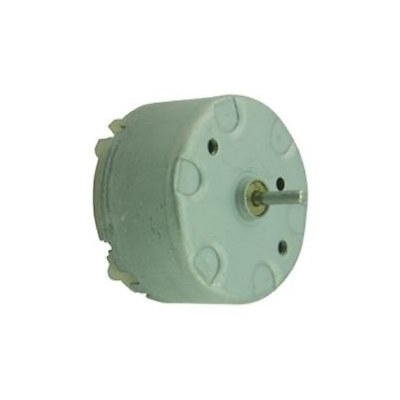

Low Inertia 6v Solar Motor
by JPR
Precision low inertia motor designed for low voltage applications. The motor is also suitable for use with solar modules and cells. Operating range 1.5-9V. Rotation is clockwise as viewed from shaft end.
Dimensions: 32mm dia. x 19.5mm length. Shaft length 8.4 x 2.0mm dia. Weight 45g approx. RoHS compliant
MODEL | NOMINAL | NO LOAD | MAXIMUM EFFICIENCY |
Constant Volts | Speed RPM | Current A | Speed RPM | Current A | Torque g-cm | Output W | Stall Torque g-cm | |
RE500TB-12560 | 6.0V | 2800 | 0.02 | 2300 | 0.075 | 10 | 0.24 | 50 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 450-432 |
|---|---|
|
Approx Weight
|
45g |
|
Model
|
RE500TB-12560 |
|
Operating Range
|
1.5-9V |
