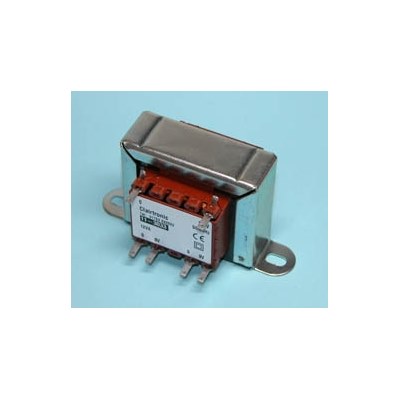

Chassis transformer 230V 12VA 12V+12V A2054

A range of high quality UK manufactured Chassis mounting transformers with a
choice of single (230v) or dual (115v + 115v) primary windings suitable for 50/60Hz operations
and two independent secondary windings suitable for connecting in series, parallel or centre tap,
giving a wide range of output voltage and current combinations.

• Designed, manufactured and tested in accordance with, EN60950* and EN60742*
• Double section metric bobbins constructed with fully shrouded windings.
• Flame retardant material to UL94V-0
• Fitted with terminations for ‘solder’ or ‘push-on’ connections (6va fitted with solder tags only)
• ‘U’ clamp style fixing for 6VA to 50VA. 75VA and 100VA fitted with universal multi-hole end frames.

* Requires additional fuse protection. Please enquire.

Width	60mm
Depth	47mm
Height	50mm
Fixing centres	74mm (2BA)
Reg typ.	12%
Weight	380g

RoHS compliant
