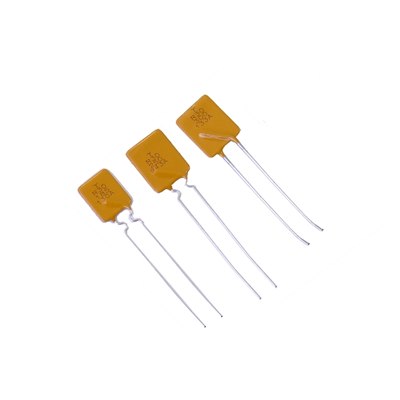

Hitano Resettable fuses - RDL30V Series 30v
by Hitano
Resettable PPTC (Polymeric Positive Temperature Coefficient) devices providing overcurrent circuit protection for a wide range of equipment. The fuses are reset by removing the supply voltage and fault condition. Temp. range -40°C to +85°C. Rated voltage 30V. Max. current 40A.
RoHS compliant
| Order code | I hold (A) | Package | Dim. A max. | Dim. B max. | Dim. C (±0.7mm) | Dim. D min. | Dim. E max | Lead dia. | Raychem cross-ref |
| 670-030 | 1.1 | 1 | 7.4 | 14.2 | 5.1 | 7.6 | 3.0 | 0.51 | RUE110 |
| 670-032 | 1.35 | 1 | 8.9 | 13.5 | 5.1 | 7.6 | 3.0 | 0.51 | RUE135 |
| 670-034 | 1.6 | 1 | 8.9 | 15.2 | 5.1 | 7.6 | 3.0 | 0.51 | RUE160 |
| 670-036 | 1.85 | 1 | 10.2 | 15.7 | 5.1 | 7.6 | 3.0 | 0.51 | RUE185 |
| 670-038 | 2.5 | 1 | 11.4 | 18.3 | 5.1 | 7.6 | 3.0 | 0.51 | RUE250 |
| 670-040 | 3.0 | 2 | 11.4 | 17.3 | 5.1 | 7.6 | 3.0 | 0.81 | RUE300 |
| 670-042 | 4.0 | 2 | 14.0 | 20.1 | 5.1 | 7.6 | 3.0 | 0.81 | RUE400 |
| 670-044 | 5.0 | 2 | 14.0 | 24.9 | 5.1 | 7.6 | 3.0 | 0.81 | RUE500 |
| 670-046 | 6.0 | 2 | 16.5 | 24.9 | 5.1 | 7.6 | 3.0 | 0.81 | RUE600 |
| 670-048 | 7.0 | 2 | 19.1 | 26.7 | 5.1 | 7.6 | 3.0 | 0.81 | RUE700 |
| 670-050 | 8.0 | 2 | 21.6 | 29.2 | 5.1 | 7.6 | 3.0 | 0.81 | RUE800 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
100+
500+
Add to basket
Request Lead Time
Order Code:
Description:
1.1A RDL30V110 Resettable Fuse 30V
1.1A RDL30V110 Resettable Fuse 30V
£0.278
(£0.334)
£0.208
(£0.250)
£0.157
(£0.188)
Price Each Exc VAT (Inc VAT)
Stock Qty: 90
1+ @ £0.278
(£0.334)
100+ @ £0.208
(£0.250)
500+ @ £0.157
(£0.188)
hide price breaks
view price breaks
Stock Qty: 90
Order Code:
Description:
1.35A RDL30V135 Resettable Fuse 30V
1.35A RDL30V135 Resettable Fuse 30V
£0.255
(£0.306)
£0.185
(£0.222)
£0.139
(£0.167)
Price Each Exc VAT (Inc VAT)
Stock Qty: 2235
1+ @ £0.255
(£0.306)
100+ @ £0.185
(£0.222)
500+ @ £0.139
(£0.167)
hide price breaks
view price breaks
Stock Qty: 2235
Order Code:
Description:
1.6A RDL30V160 Resettable Fuse 30V
1.6A RDL30V160 Resettable Fuse 30V
£0.255
(£0.306)
£0.185
(£0.222)
£0.139
(£0.167)
Price Each Exc VAT (Inc VAT)
Stock Qty: 237
1+ @ £0.255
(£0.306)
100+ @ £0.185
(£0.222)
500+ @ £0.139
(£0.167)
hide price breaks
view price breaks
Stock Qty: 237
Order Code:
Description:
1.85A RDL30V185 Resettable Fuse 30V
1.85A RDL30V185 Resettable Fuse 30V
£0.278
(£0.334)
£0.208
(£0.250)
£0.157
(£0.188)
Price Each Exc VAT (Inc VAT)
Stock Qty: 421
1+ @ £0.278
(£0.334)
100+ @ £0.208
(£0.250)
500+ @ £0.157
(£0.188)
hide price breaks
view price breaks
Stock Qty: 421
Order Code:
Description:
2.5A RDL30V250 Resettable Fuse 30V
2.5A RDL30V250 Resettable Fuse 30V
£0.255
(£0.306)
£0.185
(£0.222)
£0.139
(£0.167)
Price Each Exc VAT (Inc VAT)
Stock Qty: 938
1+ @ £0.255
(£0.306)
100+ @ £0.185
(£0.222)
500+ @ £0.139
(£0.167)
hide price breaks
view price breaks
Stock Qty: 938
Order Code:
Description:
3A RDL30V300 Resettable Fuse 30V
3A RDL30V300 Resettable Fuse 30V
£0.278
(£0.334)
£0.208
(£0.250)
£0.162
(£0.194)
Price Each Exc VAT (Inc VAT)
Stock Qty: 195
1+ @ £0.278
(£0.334)
100+ @ £0.208
(£0.250)
500+ @ £0.162
(£0.194)
hide price breaks
view price breaks
Stock Qty: 195
Order Code:
Description:
4.0A RDL30V400 Resettable Fuse 30V
4.0A RDL30V400 Resettable Fuse 30V
£0.290
(£0.348)
£0.220
(£0.264)
£0.174
(£0.209)
Price Each Exc VAT (Inc VAT)
Stock Qty: 253
1+ @ £0.290
(£0.348)
100+ @ £0.220
(£0.264)
500+ @ £0.174
(£0.209)
hide price breaks
view price breaks
Stock Qty: 253
Order Code:
Description:
5.0A RDL30V500 Resettable Fuse 30V
5.0A RDL30V500 Resettable Fuse 30V
£0.370
(£0.444)
£0.290
(£0.348)
£0.232
(£0.278)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.370
(£0.444)
100+ @ £0.290
(£0.348)
500+ @ £0.232
(£0.278)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
6.0A RDL30V600 Resettable Fuse 30V
6.0A RDL30V600 Resettable Fuse 30V
£0.370
(£0.444)
£0.290
(£0.348)
£0.232
(£0.278)
Price Each Exc VAT (Inc VAT)
Stock Qty: 199
1+ @ £0.370
(£0.444)
100+ @ £0.290
(£0.348)
500+ @ £0.232
(£0.278)
hide price breaks
view price breaks
Stock Qty: 199
Order Code:
Description:
7.0A RDL30V700 Resettable Fuse 30V
7.0A RDL30V700 Resettable Fuse 30V
£0.370
(£0.444)
£0.290
(£0.348)
£0.232
(£0.278)
Price Each Exc VAT (Inc VAT)
Stock Qty: 271
1+ @ £0.370
(£0.444)
100+ @ £0.290
(£0.348)
500+ @ £0.232
(£0.278)
hide price breaks
view price breaks
Stock Qty: 271
Order Code:
Description:
8.0A RDL30V800 Resettable Fuse 30V
8.0A RDL30V800 Resettable Fuse 30V
£0.393
(£0.472)
£0.313
(£0.376)
£0.255
(£0.306)
Price Each Exc VAT (Inc VAT)
Stock Qty: 143
1+ @ £0.393
(£0.472)
100+ @ £0.313
(£0.376)
500+ @ £0.255
(£0.306)
hide price breaks
view price breaks
Stock Qty: 143
Product Specifications
| Specification | 670-030 | 670-032 | 670-034 | 670-036 | 670-038 | 670-040 | 670-042 | 670-044 | 670-046 | 670-048 | 670-050 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hitano model
|
RDL30V110 | RDL30V135 | RDL30V160 | RDL30V185 | RDL30V250 | RDL30V300 | RDL30V400 | RDL30V500 | RDL30V600 | RDL30V700 | RDL30V800 |
|
Hold Current
|
1.1A | 1.35A | 1.6A | 1.85A | 2.5A | 3.0A | 4.0A | 5.0A | 6.0A | 7.0A | 8.0A |
|
Trip Current
|
2.2A | 2.7A | 3.2A | 3.7A | 5.0A | 6.0A | 8.0A | 10.0A | 12.0A | 14.0A | 16.0A |
|
Rated Voltage
|
30V | 30V | 30V | 30V | 30V | 30V | 30V | 30V | 30V | 30V | 30V |
