Thermal circuit breaker 3.0A FC67209
Roll over or select images to enlarge

Thermal Circuit Breakers - PCB

Brand
Scroll Down for Pricing Options

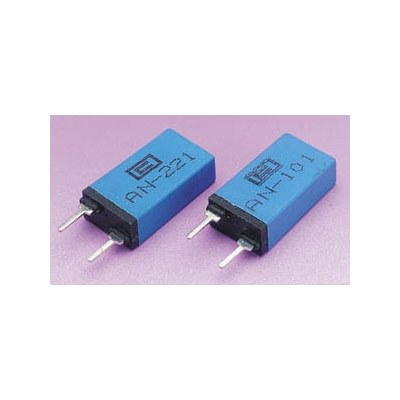

P.C.B. mounting thermal circuit breakers with automatic reset, for protection of
equipment against over-current conditions. These are particularly suitable for protecting amplifiers,
power supplies and audio speaker systems from internal overcurrents.


Contacts are snap-action, and moulded in a phenolic resin housing.


Dims. 22x12.6x6mm. PCB pin pitch 7.5mm. Voltage rating 250V AC.

Trip time overload current: 200% <30 secs. 300% <7 secs.

Current Max.Interrupt Internal
Rating Current Resistance
1.0A 20A Obsolete
1.6A 20A <100mΩ
2.2A 20A <75mΩ
3.0A 30A <35mΩ
5.0A 50A <30mΩ


RoHS compliant

* AVAILABLE UNTIL STOCKS EXHAUSTED *
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket

Product Specifications

Specification
Rating at 240Vac
