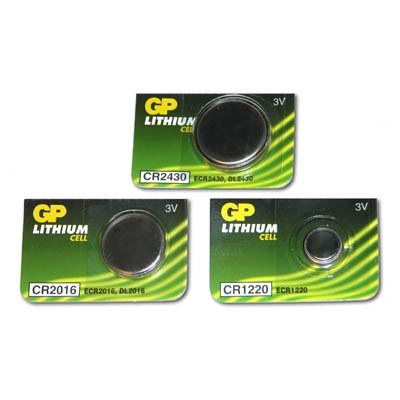

GP Lithium Coin Cells
by GP
A range of non-rechargeable lithium manganese cells. Typical applications include calculators, remote control, watches, and photographic equipment. RoHS exempt.
Dimensions(mm): | Voltage | Capacity (mAh) | Height | Dia. |
CR1220 | 3V | 25 | 1.6 | 12.0 |
CR1616 | 3V | 50 | 1.6 | 16.0 |
CR2016 | 3V | 75 | 1.6 | 20.0 |
CR2025 | 3V | 150 | 2.5 | 20.0 |
CR2032 | 3V | 200 | 3.0 | 20.0 |
For suitable holders see Battery holders and boxes
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 460-252 | 460-253 | 460-254 | 460-255 | 460-256 |
|---|---|---|---|---|---|
|
Type
|
CR1220 | CR1616 | CR2016 | CR2025 | CR2032 |
