CN166 Distribution Board
The CN166 basic unit has 14 No Positive and Negative Terminals.
The input power can be connected either by wires, a 2.1mm DC plug or a 2.5mm DC plug, the input terminal will handle up to 15 Amps, the board can be used for DC voltages up to 24vDC & DCC. (The board can be used with higher voltages, however the resister should be removed to disable the LED)
The LED will show Green if the Polarity is correct, Red if the Polarity is reversed by mistake or Orange if the Input is DCC.
Write on patch for board Voltage and Board No. There are 6 Fixing holes available.
*Available Until Stocks Exhausted*
View product specifications
The input power can be connected either by wires, a 2.1mm DC plug or a 2.5mm DC plug, the input terminal will handle up to 15 Amps, the board can be used for DC voltages up to 24vDC & DCC. (The board can be used with higher voltages, however the resister should be removed to disable the LED)
The LED will show Green if the Polarity is correct, Red if the Polarity is reversed by mistake or Orange if the Input is DCC.
Write on patch for board Voltage and Board No. There are 6 Fixing holes available.
*Available Until Stocks Exhausted*
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 445-014 |
|---|---|
|
Description
|

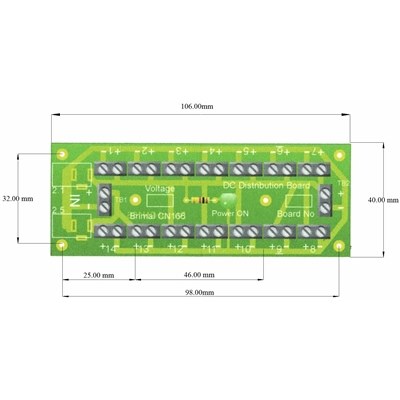

CN166 Distribution Board 106mm x 40mm x 15mm |
