DFR0536 Micro:bit Gamepad Expansion Board

Scroll Down for Pricing Options

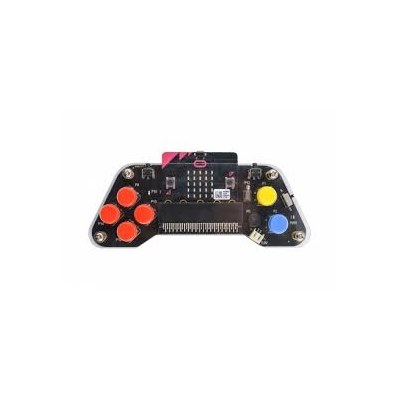

Micro:bit gamepad is an expansion gamepad based on micro:bit. You only need to plug in the micro:bit, it will turn into a wireless remote controller or a wireless game console. This product packaged with acrylic plate, that giving it a good feel and no longer feels like a bare circuit board. The gamepad has a total of 8 buttons, the left side have up, down, left, right four buttons, the right side has X, Y two buttons, and two buttons A, B are in the front of the gamepad. The gamepad also has programmable built-in vibration motor, buzzer, and LED. Using graphical programming, it will turn into a multimedia vibration controller or multimedia interactive game console instantly. The programming platform supports MakeCode graphical programming and python. It is a very suitable tool for both beginners and masters.

Operating Voltage: 3VDC (2 AAA batteries)
Number of Buttons: Up, Down, Left, Right, X, Y, A, B Total 8 programmable buttons
Onboard Vibration motor × 1
Onboard LED × 1
Onboard Buzzer × 1
Acrylic Floor x 1
Acrylic Panel × 1
Battery Box with Cover × 1
Velcro × 2
Copper Cylinder × 4
Screw × 8
Big Button ×6
Small Button× 2
Dimension:148x57(mm)/ 5.83*2.24in
