PK 1000 CR12 Resistor 680R

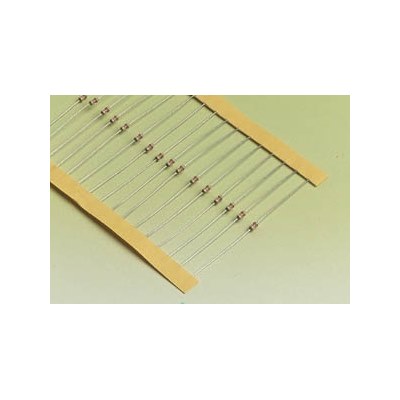

CR12 high stability carbon film resistors, suitable for industrial and consumer applications. Supplied taped and reeled on 5mm spacing. Conformal multi-coating, resistant to solvents as per MIL-STD-202E-215. EIA standard colour coding. Meets or exceeds EIA-RS-196A, JIS-C-6402 & IEC-115.
Temperature range: -25 to +70°C
Wattage: 0.125W
E12 resistance range: 10ΩR-1MΩ
Max. working voltage: 200V
Max. overload voltage: 400V
Body dims. (L x dia): 3.5 x 1.7mm
Leads dims. (L x dia): 28 x 0.5mm

RoHS compliant

Available CR12 resistance values:

	47R	330R	2.2K	15K	100K	680K
	56R	390R	2.7K	18K	120K	820K
10R	68R	470R	3.3K	22K	150K	1.0M
12R	82R	560R	3.9K	27K	180K
15R	100R	680R	4.7K	33K	220K
18R	120R	820R	5.6K	39K	270K
22R	150R	1.0K	6.8K	47K	330K
27R	180R	1.2K	8.2K	56K	390K
33R	220R	1.5K	10K	68K	470K
39R	270R	1.8K	12K	82K	560K

The order codes below are for CR12 supplied in boxes of 1000 only.
For smaller pack quantities please go back to carbon film resistor page.
