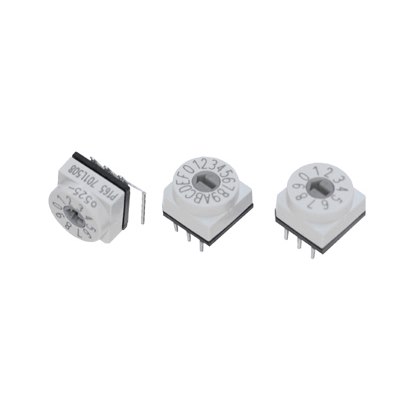

Binary Switch Hex Horiz.(16 pos)PT65-103
by Apem
Binary coded miniature PCB mounting rotary switches, with gold contacts and terminals.
Horizontal or vertical right-angle mounting, with screwdriver adjustment, fully sealed
and board washable. Available BCD code (10 positions, 0-9) and HEX code (16 positions, 0-9, A-F).
| Contact rating: | 150mA 24VDC switching. |
| Contact resistance: | <80mW |
| Operating life: | >10,000 operations |
| Operating temp: | -20°C to +70°C |
| Dimensions: | 10mm L x 10mm W x 6.5mm H |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-652 |
|---|---|
|
Description
|
Hex Code Horizontal (16 pos) |
