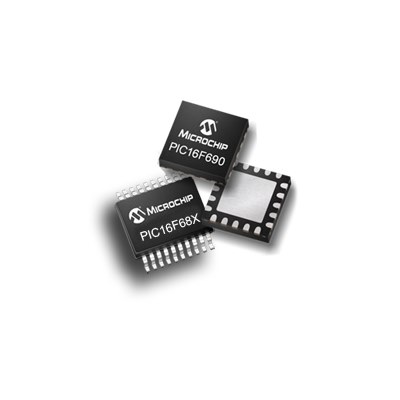

PIC12F/PIC16F 8-bit Microcontrollers
by Microchip
The PIC12F and PIC16F product families have an 8-bit CPU that can operate at speeds up to 5 MIPS. Device variants in the PIC12F family have 8 pins, while PIC16F variants are offered in 14-pin through 64-pin packages. Some variants in the PIC16F family have one or more Enhanced Capture Compare PWM Peripheral (ECCP) modules. The ECCP module is optimized for controlling 1/2 bridge or H-bridge motor drive circuits. It can also be used to steer PWM control signals among 4 output pins for BLDC motor commutation or stepper motor control.
Features
4 ch. PWM 10-bit
256 bytes of EEPROM data memory
Extended WDT
MPLAB® ICD 3 programming support or debugging support with optional header adapter
Precision internal oscillator-software selectable 8 MHz-32 KHz
nanoWatt Technology
Software selectable BOR
View product specifications
Features
4 ch. PWM 10-bit
256 bytes of EEPROM data memory
Extended WDT
MPLAB® ICD 3 programming support or debugging support with optional header adapter
Precision internal oscillator-software selectable 8 MHz-32 KHz
nanoWatt Technology
Software selectable BOR
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 200-049 | 200-053 | 200-069 | 200-080 | 200-084 | 200-085 | 200-086 | 201-012 | 201-013 | 201-052 | 201-053 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Package
|
DIL-18 | DIL-18 | DIL-14 | DIL-14 | SO-14 | DIL-14 | DIL-14 | DIL-8 | SO-8 | SO-18 | DIL-18 |
|
I/O lines
|
13 | 16 | 12 | 12 | 12 | 12 | 12 | 6 | 6 | 16 | 16 |
|
Max. freq.
|
20MHz | 4MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 4MHz | 4MHz | 20MHz | 20MHz |
|
RAM
|
68 | 224 | 64 | 64 | 64 | 64 | 128 | 25 | 25 | 224 | 224 |
|
Flash
|
1792 | 2K | 2048 | 1K | 1K | 1K | 2K | 512 | 512 | 1K | 2K |
|
Device
|
PIC16F84A-20/P | PIC16F628-04P | PIC16F616-I/P | PIC16F630-I/P | PIC16F676-I/SL | PIC16F676-I/P | PIC16F684-I/P | PIC12F508-I/P | PIC12F508-I/SN | PIC16F627A-I/SO | PIC16F628A-I/P |
