8 Commoned Resistors - 9 Pin Package

Scroll Down for Pricing Options

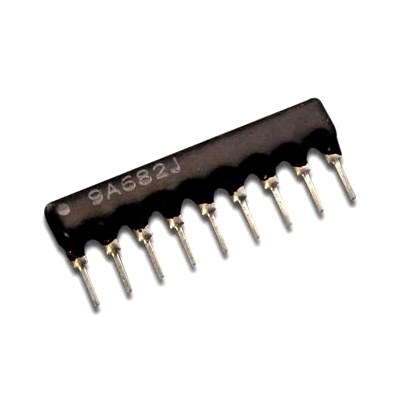

Res network 8 commoned 100R
Roll over or select images to enlarge

8 Commoned Resistors - 9 Pin Package

Scroll Down for Pricing Options
Thick film resistor networks housed in low-profile epoxy coated SIL package. High quality metal glaze elements on ceramic substrate. Suitable for high density circuit boards.

RoHS compliant


Power rating/element @ 70°C: 0.125W
Temp coefficient -55° to +125°C: ±100ppm/°C
Resistance tol: ±2%
Length: 22.8mm

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 501-104 501-107 501-110 501-112 501-115 501-120 501-125 501-130 501-135 501-140 501-145 501-150
Dimension L (max)
23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm 23.0mm
Power Rating per package
1.15W 1.15W 1.15W 1.15W 1.15W 1.15W 1.15W 1.15W 1.15W 1.15W 1.15W 1.15W
Value
100Ω 220Ω 330Ω 470Ω 1K 2K2 4K7 10K 22K 47K 100K 220K
