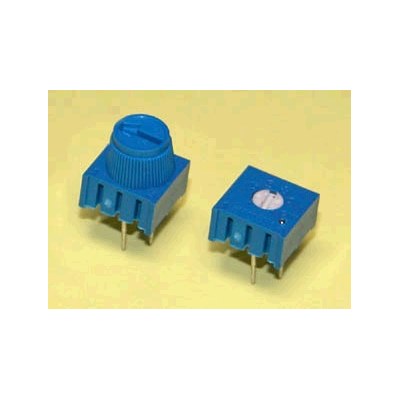

50K TSR-3386P Slot Adjust 3/8in Single Turn
by Suntan
Suntan TSR3386P range of fully enclosed, top-adjusting, single turn cermet trimmers offering high stability and reliability.
Sealed to withstand industrial cleaning solvents and harsh environments with moulded PCB stand offs.
Available with standard screwdriver slot adjust or finger adjust with integral knob.
View product specifications
Sealed to withstand industrial cleaning solvents and harsh environments with moulded PCB stand offs.
Available with standard screwdriver slot adjust or finger adjust with integral knob.
| Rating: | 0.5W at 70°C |
| Nominal rotation: | 250°, 1 turn |
| Resistance tolerance: | 10% |
| Temperature coefficient: | ±200ppm/°C |
| End resistance: | 1% |
| Withstand Voltage: | 600VAC |
| Temperature range: | -55 to +125°C |
| Pinout: | 5.0 x 2.5mm |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 435-035 |
|---|---|
|
Type
|
Slot adjust |
|
Value
|
50K |
