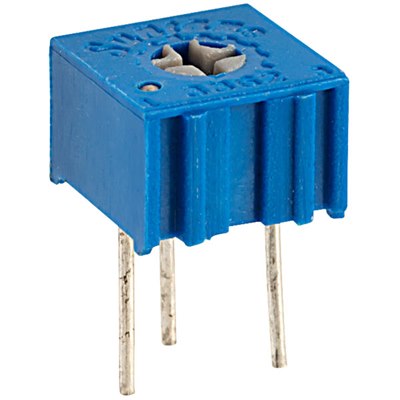

10K TSR-3362P-103R 0.25 Single Turn Cermet Trimmer
by Suntan
Suntan TSR-3362P Series of miniature 0.25in 10% 0.5W single turn cermet potentiometer, sealed to withstand industrial cleaning solvents and harsh environments.
- Top adjustment
- Through-hole
- Moulded PCB stand-offs
- Unique multi-finger wiper design ensures excellent noise and stability characteristics
| Standard Resistance Range | 10Ω - 5MΩ |
|---|---|
| Resistance Tolerance | ±10% (±20% only for 10Ω) |
| Absolute Minimum Resistance | ≤1% R or 10n; |
| Contact Resistance Variation | CRV≤3%or 5Ω(whichever is greater) |
| Insulation Resistance | R1≥1GΩ(500Vac) |
| Withstand Voltage | 700V AC |
| Effective Travel | 250°±10° |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 435-535 |
|---|---|
|
Value
|
10K |
