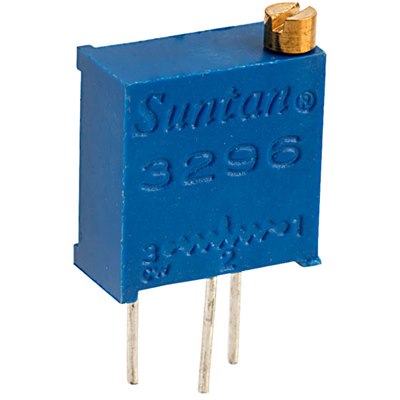

500R Suntan TSR-3296Y-501R 10% 3/8 Cermet Trimmer
by Suntan
Suntan 3296Y Series 3/8in 10% 0.5W multiturn cermet trimming potentiometer
- Top adjustment
- Robust construction
- Fully sealed
- Housing incorporates PCB stand-offs and slipping clutch end stops
- Suitable for mounting onto PCBs horizontally or vertically
| Standard Resistance Range | 10Ω - 5MΩ |
|---|---|
| Resistance Tolerance | ±10% (±20% only for 10 ohm) |
| Absolute Minimum Resistance | ≤1% R or 2Ω |
| Contact Resistance Variation | CRV≤1%or 3Ω |
| Insulation Resistance | R1≥1GΩ(500V AC) |
| Withstand Voltage | 640V AC |
| Effective Travel | 28 turns nom |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 428-220 |
|---|---|
|
Value
|
500R |
