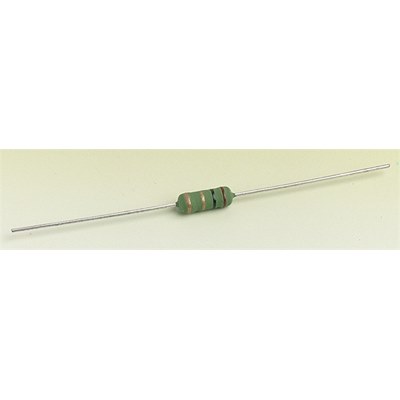

2.5W W/W resistor 3.3R
Ceramic former construction with flame retardant silicon resin coating.
| Power rating @ 70°C: | 2.5 watts (derate to zero @ 275°C) |
| Tolerance: | ±5% |
| Temp. coefficient (above 22R): | ±300ppm/°C |
| Temp. coefficient (below 22R): | ±400ppm/°C |
| Operating temperature: | -40 to +275°C |
| Body dimensions: | 12mm L x 5mm dia. |
| Leads: | 28L x 0.8mmø |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 414-035 |
|---|---|
|
Value
|
3.3R |
