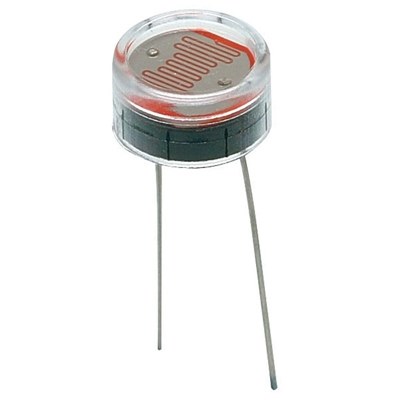

Light Dependent Resistor (LDR)
Non-RoHS Photoconductive cadmium sulphide light dependent resistor housed in a sealed epoxy case with clear lens window. Resistance decreases as light falling on the window increases.
| Peak wavelength: | 560nm |
| On resistance: | 6.5KW - 13.5KW |
| Off resistance: | 0.5MW |
| Maximum dissipation: | 250mW @ 25°C |
| Maximum voltage: | 320V |
This device contains cadmium sulphide, which is restricted by the RoHS directive, and therefore not RoHS compliant
