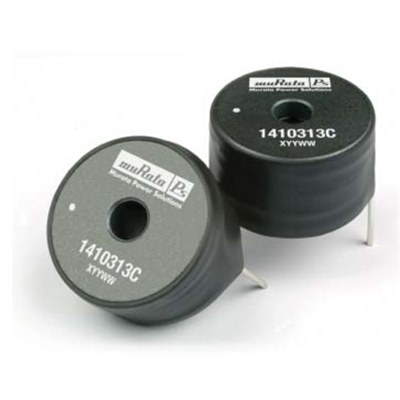

Murata 1400 Series Bobbin Type Inductor
Murata 1400 series inductors. Suitable for many power supply and other general purpose filtering applications.
Inductance tolerance ±10%.
View product specifications
Inductance tolerance ±10%.
available
Operating Temperature range -40˚C to +85˚C
Inductance Tolerance ±10%RoHS compliant
| Ind | Q | Test | Self | RDC | DC Current | Bobbin | Type |
| uH | Freq | Resonance | ( W ) | rating(A) | Size | ||
| (kHz) | Freq (MHz) | ||||||
| 22 | 64 | 100 | 9.3 | 0.011 | 11.0 | 27x24.4x14 | 1422311C |
| 47 | 40 | 100 | 6.7 | 0.021 | 8.5 | 26.8x24.4x14 | 1447385C |
| 68 | 32 | 100 | 5.3 | 0.032 | 6.2 | 26.5x24.4x14 | 1468362C |
| 100 | 24 | 100 | 4.6 | 0.042 | 5.4 | 26.4x24.4x14 | 1410454C |
| 100 | 34 | 50 | 3.3 | 0.040 | 7.8 | 32.4x29.8x21.8 | 1410478C |
| 150 | 24 | 50 | 3.4 | 0.069 | 4.0 | 26.2x24.4x14 | 1415440C |
| 220 | 22 | 50 | 2.8 | 0.096 | 3.5 | 26.1x24.4x14 | 1422435C |
| 220 | 30 | 50 | 2.2 | 0.062 | 5.5 | 32.1x29.8x21.8 | 1422455C |
| 330 | 22 | 50 | 2.5 | 0.150 | 2.8 | 25.9x24.4x14 | 1433428C |
| 330 | 25 | 50 | 1.6 | 0.091 | 4.5 | 31.8x29.8x21.8 | 1433445C |
| 470 | 34 | 50 | 2.0 | 0.222 | 2.3 | 25.7x24.4x14 | 1447423C |
| 470 | 24 | 50 | 1.4 | 0.125 | 4.0 | 31.7x29.8x21.8 | 1447440C |
| 680 | 23 | 50 | 1.6 | 0.276 | 2.0 | 25.7x24.4x14 | 1468420C |
| 1.0mH | 35 | 50 | 1.6 | 0.419 | 1.6 | 25.6x24.4x14 | 1410516C |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
10+
25+
100+
Add to basket
Request Lead Time
Order Code:
Description:
Bobbin inductor 22uH 1422311C
Bobbin inductor 22uH 1422311C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 16
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 16
Order Code:
Description:
Bobbin inductor 47uH 1447385C
Bobbin inductor 47uH 1447385C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 50
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 50
Order Code:
Description:
Bobbin inductor 68uH 1468362C
Bobbin inductor 68uH 1468362C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
Bobbin inductor 100uH 1410454C
Bobbin inductor 100uH 1410454C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 6
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 6
Order Code:
Description:
Bobbin inductor 100uH 1410478C
Bobbin inductor 100uH 1410478C
£4.007
(£4.808)
£3.918
(£4.702)
£3.840
(£4.608)
£3.673
(£4.408)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £4.007
(£4.808)
10+ @ £3.918
(£4.702)
25+ @ £3.840
(£4.608)
100+ @ £3.673
(£4.408)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
Bobbin inductor 150uH 1415440C
Bobbin inductor 150uH 1415440C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 13
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 13
Order Code:
Description:
Bobbin inductor 220uH 1422435C
Bobbin inductor 220uH 1422435C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 8
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 8
Order Code:
Description:
Bobbin inductor 220uH 1422455C
Bobbin inductor 220uH 1422455C
£4.007
(£4.808)
£3.918
(£4.702)
£3.840
(£4.608)
£3.673
(£4.408)
Price Each Exc VAT (Inc VAT)
Stock Qty: 8
1+ @ £4.007
(£4.808)
10+ @ £3.918
(£4.702)
25+ @ £3.840
(£4.608)
100+ @ £3.673
(£4.408)
hide price breaks
view price breaks
Stock Qty: 8
Order Code:
Description:
Bobbin inductor 330uH 1433428C
Bobbin inductor 330uH 1433428C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 65
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 65
Order Code:
Description:
Bobbin inductor 330uH 1433445C
Bobbin inductor 330uH 1433445C
£4.007
(£4.808)
£3.918
(£4.702)
£3.840
(£4.608)
£3.673
(£4.408)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £4.007
(£4.808)
10+ @ £3.918
(£4.702)
25+ @ £3.840
(£4.608)
100+ @ £3.673
(£4.408)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
Bobbin inductor 470uH 1447423C
Bobbin inductor 470uH 1447423C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
Bobbin inductor 470uH 1447440C
Bobbin inductor 470uH 1447440C
£5.940
(£7.128)
£4.950
(£5.940)
£4.780
(£5.736)
£4.460
(£5.352)
Price Each Exc VAT (Inc VAT)
Stock Qty: 11
1+ @ £5.940
(£7.128)
10+ @ £4.950
(£5.940)
25+ @ £4.780
(£5.736)
100+ @ £4.460
(£5.352)
hide price breaks
view price breaks
Stock Qty: 11
Order Code:
Description:
Bobbin inductor 680uH 1468420C
Bobbin inductor 680uH 1468420C
£3.551
(£4.261)
£3.138
(£3.766)
£2.841
(£3.409)
£2.745
(£3.294)
Price Each Exc VAT (Inc VAT)
Stock Qty: 18
1+ @ £3.551
(£4.261)
10+ @ £3.138
(£3.766)
25+ @ £2.841
(£3.409)
100+ @ £2.745
(£3.294)
hide price breaks
view price breaks
Stock Qty: 18
Order Code:
Description:
Bobbin inductor 1.0mH 1410516C
Bobbin inductor 1.0mH 1410516C
£2.638
(£3.166)
£2.549
(£3.059)
£2.426
(£2.911)
£2.281
(£2.737)
Price Each Exc VAT (Inc VAT)
Stock Qty: 24
1+ @ £2.638
(£3.166)
10+ @ £2.549
(£3.059)
25+ @ £2.426
(£2.911)
100+ @ £2.281
(£2.737)
hide price breaks
view price breaks
Stock Qty: 24
Product Specifications
| Specification | 834-402 | 834-404 | 834-406 | 834-408 | 834-410 | 834-412 | 834-414 | 834-416 | 834-418 | 834-420 | 834-422 | 834-423 | 834-424 | 834-426 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Value
|
22µH | 47µH | 68µH | 100µH | 100µH | 150µH | 220µH | 220µH | 330µH | 330µH | 470µH | 470µH | 680µH | 1.0mH |
|
Current max.
|
11.0A | 8.5A | 6.2A | 5.4A | 7.8A | 4.0A | 3.5A | 5.5A | 2.8A | 4.5A | 2.3A | 4.0A | 2.0A | 1.6A |
