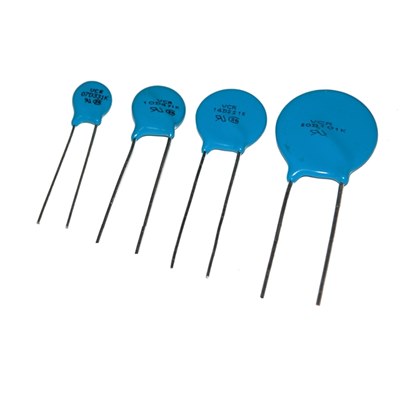

Hitano Metal Oxide Varistors
A range of voltage dependent metal oxide varistors designed to protect equipment against transient voltage spikes.
The varistors are connected directly across the power supply rails. When a when a voltage spike is encountered, the varistor rapidly changes impedance from its normal high impedance state while in standby mode, to a very low level, permitting absorbtion of the unwanted high voltage, and protecting voltage sensitive components and circuits from damage.
Epoxy coated disc construction with radial leads.
UL, CSA & VDE approved. RoHS compliant
| Response time: | <50ns |
| Voltage coefficient/temperature: | ±0.05%/°C |
| DC leakage current: | 200uA max. |
| Insulation voltage: | <330V nom. varistor voltage - 1000Vrms >330V nom. varistor voltage - 1500Vrms |
| Storage temp. range: | -40°C to +85°C |
| Operating temp. range: | -40°C to +125°C |
| Body | D. | H | Lead | Lead |
| Style | max. | max | pitch F | dia. D |
| 07D | 9 | 11 | 5.0 | 0.6 |
| 10D | 14 | 15 | 7.5 | 0.8 |
| 14D | 17.5 | 18 | 7.5 | 0.8 |
| 20D | 24 | 25 | 7.5 | 0.8 |
| Part No. | Manuf. Ref. | Max. Voltage VAC | Max. Voltage VDC | Varistor Voltage Nom. | Clamping Voltage (Max V at A) | Peak Transient Current (A) | Max. Energy 2ms (Joule) | Rated Power (W) | T max |
579-010 | 07D180L | 11 | 14 | 18 | 36@2.5A | 250 | 0.8 | 0.02 | 3.5 |
579-015 | 07D220K | 14 | 18 | 22 | 43@2.5A | 250 | 0.9 | 0.02 | 3.8 |
579-020 | 10D220K | 14 | 18 | 22 | 43@5A | 500 | 2.0 | 0.05 | 4.2 |
579-025 | 10D330K | 20 | 26 | 33 | 65@5A | 500 | 3.0 | 0.05 | 3.9 |
579-030 | 07D470K | 30 | 38 | 47 | 93@2.5A | 250 | 1.8 | 0.02 | 3.9 |
579-035 | 07D560K | 35 | 45 | 56 | 110@2.5A | 250 | 2.2 | 0.02 | 4.2 |
579-040 | 07D820K | 50 | 65 | 82 | 135@10A | 1200 | 3.5 | 0.25 | 3.5 |
579-045 | 14D820K | 50 | 65 | 82 | 135@50A | 4500 | 14.0 | 0.60 | 4.0 |
579-050 | 10D151K | 95 | 125 | 150 | 250@25A | 2500 | 16.0 | 0.40 | 4.7 |
579-055 | 07D221K | 140 | 180 | 220 | 360@10A | 1200 | 10.0 | 0.25 | 3.6 |
579-060 | 14D221K | 140 | 180 | 220 | 360@50A | 4500 | 40.0 | 0.60 | 4.1 |
579-065 | 10D241K | 150 | 200 | 240 | 395@25A | 2500 | 25.0 | 0.40 | 4.1 |
579-075 | 07D271K | 175 | 225 | 270 | 455@10A | 1200 | 12.0 | 0.25 | 3.9 |
579-080 | 07D361K | 230 | 300 | 360 | 595@10A | 1200 | 15.0 | 0.25 | 4.3 |
579-085 | 10D361K | 230 | 300 | 360 | 595@/25A | 2500 | 35.0 | 0.40 | 4.7 |
579-090 | 14D361K | 230 | 300 | 360 | 595@50A | 4500 | 65.0 | 0.60 | 4.8 |
579-095 | 07D391K | 250 | 320 | 390 | 650@10A | 1200 | 17.0 | 0.25 | 4.3 |
579-100 | 20D391K | 250 | 320 | 390 | 650@100A | 6500 | 130 | 1.00 | 5.2 |
579-110 | 07D431K | 275 | 350 | 430 | 710@10A | 1200 | 20.0 | 0.25 | 4.6 |
579-112 | 10D431K | 275 | 350 | 430 | 710@25A | 2500 | 45.0 | 0.40 | 5.0 |
579-115 | 14D431K | 275 | 350 | 430 | 710@50A | 4500 | 75.0 | 0.60 | 5.1 |
579-120 | 20D431K | 275 | 350 | 430 | 710@100A | 6500 | 140.0 | 1.00 | 5.4 |
579-125 | 07D471K | 300 | 385 | 470 | 775@10A | 1200 | 20.0 | 0.25 | 4.8 |
579-130 | 14D471K | 300 | 385 | 470 | 775@50A | 4500 | 80.0 | 0.60 | 5.3 |
579-135 | 14D681K | 420 | 560 | 680 | 1120@50A | 4500 | 90.0 | 0.60 | 5.9 |
579-140 | 14D751K | 460 | 615 | 750 | 1240@50A | 4500 | 100.0 | 0.60 | 6.1 |
579-145 | 20D781K | 485 | 640 | 780 | 1290@100A | 6500 | 180.0 | 1.00 | 6.7 |
579-071 | 14D821K | 510 | 670 | 820 | 1355@50a | 4500 | 110.0 | 0.60 | 6.6 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
100+
500+
Add to basket
Order Code:
Description:
M.O. Varistor 07D180K
M.O. Varistor 07D180K
£0.100
(£0.120)
£0.070
(£0.084)
£0.050
(£0.060)
Price Each Exc VAT (Inc VAT)
1+ @ £0.100
(£0.120)
100+ @ £0.070
(£0.084)
500+ @ £0.050
(£0.060)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D220K
M.O. Varistor 07D220K
£0.100
(£0.120)
£0.070
(£0.084)
£0.050
(£0.060)
Price Each Exc VAT (Inc VAT)
1+ @ £0.100
(£0.120)
100+ @ £0.070
(£0.084)
500+ @ £0.050
(£0.060)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 10D220K
M.O. Varistor 10D220K
£0.160
(£0.192)
£0.120
(£0.144)
£0.080
(£0.096)
Price Each Exc VAT (Inc VAT)
1+ @ £0.160
(£0.192)
100+ @ £0.120
(£0.144)
500+ @ £0.080
(£0.096)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 10D330K
M.O. Varistor 10D330K
£0.160
(£0.192)
£0.120
(£0.144)
£0.080
(£0.096)
Price Each Exc VAT (Inc VAT)
1+ @ £0.160
(£0.192)
100+ @ £0.120
(£0.144)
500+ @ £0.080
(£0.096)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D470K
M.O. Varistor 07D470K
£0.100
(£0.120)
£0.070
(£0.084)
£0.050
(£0.060)
Price Each Exc VAT (Inc VAT)
1+ @ £0.100
(£0.120)
100+ @ £0.070
(£0.084)
500+ @ £0.050
(£0.060)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D560K
M.O. Varistor 07D560K
£0.100
(£0.120)
£0.070
(£0.084)
£0.050
(£0.060)
Price Each Exc VAT (Inc VAT)
1+ @ £0.100
(£0.120)
100+ @ £0.070
(£0.084)
500+ @ £0.050
(£0.060)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D820K
M.O. Varistor 07D820K
£0.100
(£0.120)
£0.070
(£0.084)
£0.050
(£0.060)
Price Each Exc VAT (Inc VAT)
1+ @ £0.100
(£0.120)
100+ @ £0.070
(£0.084)
500+ @ £0.050
(£0.060)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D820K
M.O. Varistor 14D820K
£0.160
(£0.192)
£0.120
(£0.144)
£0.080
(£0.096)
Price Each Exc VAT (Inc VAT)
1+ @ £0.160
(£0.192)
100+ @ £0.120
(£0.144)
500+ @ £0.080
(£0.096)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 10D151K
M.O. Varistor 10D151K
£0.120
(£0.144)
£0.080
(£0.096)
£0.060
(£0.072)
Price Each Exc VAT (Inc VAT)
1+ @ £0.120
(£0.144)
100+ @ £0.080
(£0.096)
500+ @ £0.060
(£0.072)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D221K
M.O. Varistor 07D221K
£0.070
(£0.084)
£0.050
(£0.060)
£0.035
(£0.042)
Price Each Exc VAT (Inc VAT)
1+ @ £0.070
(£0.084)
100+ @ £0.050
(£0.060)
500+ @ £0.035
(£0.042)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D221K
M.O. Varistor 14D221K
£0.160
(£0.192)
£0.120
(£0.144)
£0.080
(£0.096)
Price Each Exc VAT (Inc VAT)
1+ @ £0.160
(£0.192)
100+ @ £0.120
(£0.144)
500+ @ £0.080
(£0.096)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 10D241K
M.O. Varistor 10D241K
£0.120
(£0.144)
£0.080
(£0.096)
£0.060
(£0.072)
Price Each Exc VAT (Inc VAT)
1+ @ £0.120
(£0.144)
100+ @ £0.080
(£0.096)
500+ @ £0.060
(£0.072)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D271K
M.O. Varistor 07D271K
£0.070
(£0.084)
£0.050
(£0.060)
£0.035
(£0.042)
Price Each Exc VAT (Inc VAT)
1+ @ £0.070
(£0.084)
100+ @ £0.050
(£0.060)
500+ @ £0.035
(£0.042)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D361K
M.O. Varistor 07D361K
£0.070
(£0.084)
£0.050
(£0.060)
£0.035
(£0.042)
Price Each Exc VAT (Inc VAT)
1+ @ £0.070
(£0.084)
100+ @ £0.050
(£0.060)
500+ @ £0.035
(£0.042)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 10D361K
M.O. Varistor 10D361K
£0.120
(£0.144)
£0.080
(£0.096)
£0.060
(£0.072)
Price Each Exc VAT (Inc VAT)
1+ @ £0.120
(£0.144)
100+ @ £0.080
(£0.096)
500+ @ £0.060
(£0.072)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D361K
M.O. Varistor 14D361K
£0.160
(£0.192)
£0.120
(£0.144)
£0.090
(£0.108)
Price Each Exc VAT (Inc VAT)
1+ @ £0.160
(£0.192)
100+ @ £0.120
(£0.144)
500+ @ £0.090
(£0.108)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D391K
M.O. Varistor 07D391K
£0.070
(£0.084)
£0.050
(£0.060)
£0.035
(£0.042)
Price Each Exc VAT (Inc VAT)
1+ @ £0.070
(£0.084)
100+ @ £0.050
(£0.060)
500+ @ £0.035
(£0.042)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 20D391K
M.O. Varistor 20D391K
£0.340
(£0.408)
£0.250
(£0.300)
£0.200
(£0.240)
Price Each Exc VAT (Inc VAT)
1+ @ £0.340
(£0.408)
100+ @ £0.250
(£0.300)
500+ @ £0.200
(£0.240)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D431K
M.O. Varistor 07D431K
£0.080
(£0.096)
£0.060
(£0.072)
£0.040
(£0.048)
Price Each Exc VAT (Inc VAT)
1+ @ £0.080
(£0.096)
100+ @ £0.060
(£0.072)
500+ @ £0.040
(£0.048)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 10D431K
M.O. Varistor 10D431K
£0.120
(£0.144)
£0.080
(£0.096)
£0.060
(£0.072)
Price Each Exc VAT (Inc VAT)
1+ @ £0.120
(£0.144)
100+ @ £0.080
(£0.096)
500+ @ £0.060
(£0.072)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D431K
M.O. Varistor 14D431K
£0.180
(£0.216)
£0.140
(£0.168)
£0.100
(£0.120)
Price Each Exc VAT (Inc VAT)
1+ @ £0.180
(£0.216)
100+ @ £0.140
(£0.168)
500+ @ £0.100
(£0.120)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 20D431K
M.O. Varistor 20D431K
£0.340
(£0.408)
£0.250
(£0.300)
£0.200
(£0.240)
Price Each Exc VAT (Inc VAT)
1+ @ £0.340
(£0.408)
100+ @ £0.250
(£0.300)
500+ @ £0.200
(£0.240)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 07D471K
M.O. Varistor 07D471K
£0.080
(£0.096)
£0.060
(£0.072)
£0.040
(£0.048)
Price Each Exc VAT (Inc VAT)
1+ @ £0.080
(£0.096)
100+ @ £0.060
(£0.072)
500+ @ £0.040
(£0.048)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D471K
M.O. Varistor 14D471K
£0.180
(£0.216)
£0.140
(£0.168)
£0.100
(£0.120)
Price Each Exc VAT (Inc VAT)
1+ @ £0.180
(£0.216)
100+ @ £0.140
(£0.168)
500+ @ £0.100
(£0.120)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D681K
M.O. Varistor 14D681K
£0.220
(£0.264)
£0.160
(£0.192)
£0.120
(£0.144)
Price Each Exc VAT (Inc VAT)
1+ @ £0.220
(£0.264)
100+ @ £0.160
(£0.192)
500+ @ £0.120
(£0.144)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 14D751K
M.O. Varistor 14D751K
£0.220
(£0.264)
£0.160
(£0.192)
£0.120
(£0.144)
Price Each Exc VAT (Inc VAT)
1+ @ £0.220
(£0.264)
100+ @ £0.160
(£0.192)
500+ @ £0.120
(£0.144)
hide price breaks
view price breaks
Order Code:
Description:
M.O. Varistor 20D781K
M.O. Varistor 20D781K
£0.480
(£0.576)
£0.330
(£0.396)
£0.240
(£0.288)
Price Each Exc VAT (Inc VAT)
1+ @ £0.480
(£0.576)
100+ @ £0.330
(£0.396)
500+ @ £0.240
(£0.288)
hide price breaks
view price breaks
Product Specifications
| Specification | 579-010 | 579-015 | 579-020 | 579-025 | 579-030 | 579-035 | 579-040 | 579-045 | 579-050 | 579-055 | 579-060 | 579-065 | 579-075 | 579-080 | 579-085 | 579-090 | 579-095 | 579-100 | 579-110 | 579-112 | 579-115 | 579-120 | 579-125 | 579-130 | 579-135 | 579-140 | 579-145 | 579-071 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Ref.
|
07D180L | 07D220K | 10D220K | 10D330K | 07D470K | 07D560K | 07D820K | 14D820K | 10D151K | 07D221K | 14D221K | 10D241K | 07D271K | 07D361K | 10D361K | 14D361K | 07D391K | 20D391K | 07D431K | 10D431K | 14D431K | 20D431K | 07D471K | 14D471K | 14D681K | 14D751K | 20D781K | 14D821K |
|
VAC
|
11VAC | 14VAC | 14VAC | 20VAC | 30VAC | 35VAC | 50VAC | 50VAC | 95VAC | 140VAC | 140VAC | 150VAC | 175VAC | 230VAC | 230VAC | 230VAC | 250VAC | 250VAC | 275VAC | 275VAC | 275VAC | 275VAC | 300VAC | 300VAC | 420VAC | 460VAC | 485VAC | 510VAC |
