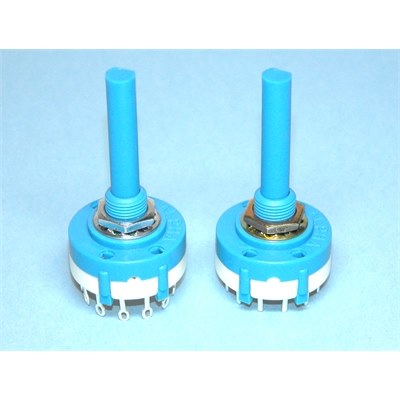

Rotary switch 4P 3W PCB shorting
Rotary wafer switches moulded in glass-filled nylon - UL94V-O.
Contacts are make before break (shorting).
| Contact rating: | 150mA 250V AC |
| Max. working voltage: | 300V AC/DC resistive. |
| Contact resistance: | <20mΩ |
| Operating life: | >10,000 cycles. |
| Body diameter: | 26mm max. |
| Spindle : | 6.35mm dia. x 29mm long, with flat. |
| Mounting bush: | 9.8mm dia. |
| Terminal options: | PCB terminal |
Alpha SR2612F series.
RoHS compliant
**** Available until stocks exhausted ****
