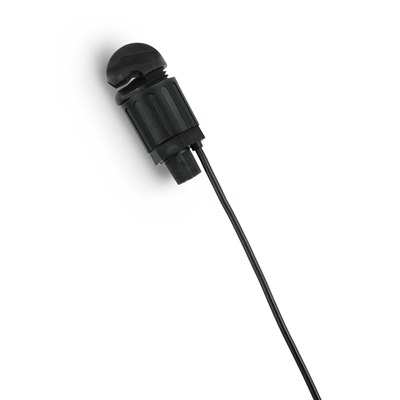

WAGO 855-8001 Power tap; 2,5 mm²-6mm²; with fuse
by Wago
WAGO 855-8001
- Power tap
- with fuse
- 2,5 mm² (12 AWG) 6mm² (10 AWG)
- Phase
WAGO's voltage taps (855 Series) easily and safely tap the measurement voltage.
This allows a fuse-protected measurement voltage to be tapped from an insulated conductor with just one turn – no tools required.Features:
- Safely tap the measurement voltage with just one turn
- Tool-free assembly
- Secure mounting
- Voltage taps (855-8001 and 855-8003) include a (5 x 25) mm 2 A fuse
- For insulated conductors up to 16 mm² (6 AWG)
- Cable length: 3 m
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 855-8001 |
|---|---|
|
Connection technology:
|
IDC connection |
|
Limiting continuous current:
|
2A |
