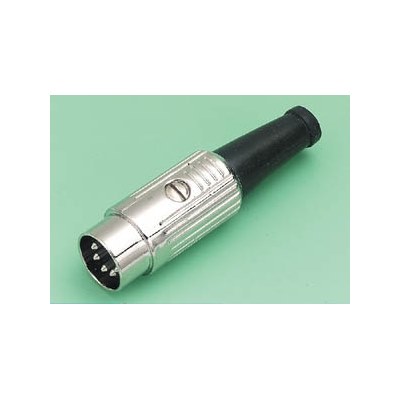

8 pin DIN plug 610-0800
by Deltron
Deltron 610 professional series.
Robust construction professional DIN plugs, incorporating cable clamp and strain relief.
Fully screened nickel-plated zinc housing. Contacts are silver-plated brass.
Designed to mate with Deltron 650 series chassis sockets.RoHS compliant
| Working voltage: | 100V AC/DC max. |
| Contact rating: | 4A |
| Contact resistance: | <10mΩ |
| Temperature range: | -25°C to +70°C |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 700-240 |
|---|---|
|
Type
|
610-0800 8 pin plug |
