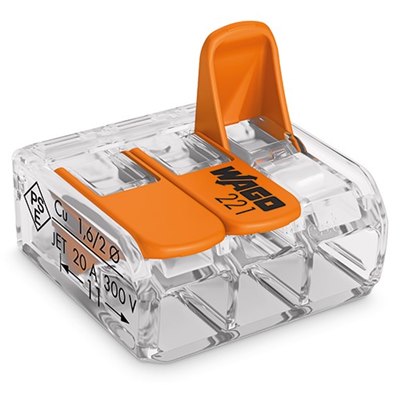

221-413 3 Way WAGOTransparent Housing, Orange Lever
by Wago
THE 221 SERIES FROM WAGO – FLEXIBLE, FAST AND SAFE
Pull the lever up, insert a conductor and push the lever back down – done!
As tool-free, lever-actuated connectors, WAGO's 221 Series Splicing Connectors easily, quickly and safely connect solid, stranded and fine-stranded conductors ranging from 0.14 to 6 mm² (24–10 AWG).
They are available in various designs and variants. In addition, a large accessories portfolio is available, making WAGO's 221 Series Splicing Connectors great for a wide range of applications.
- Up to 40% smaller less space required than for the original WAGO 222
- Solid & Stranded Conductors: 0.2-4mm2, Fine Stranded Conductor: 0.14-4mm2
- Current Rating: 32A
- Voltage Rating: 450V
- W: 13.1mm x H: 8.3mm x D: 18.6mm
- Ambient Temperature: 85°C
- Clear with Orange Levers
- Side entry wiring type
For use with the 207-1333 GEL Box!
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 221-413 |
|---|---|
|
Customs Tariff No.
|
85369010000 |
|
GTIN
|
4050821808442 |
|
Dimensions LxWxH (mm)
|
18.6 x 18.7 x 8.3 |
|
Type
|
221-413 WAGO 3 wire spring connector - Box Qty 50 |
