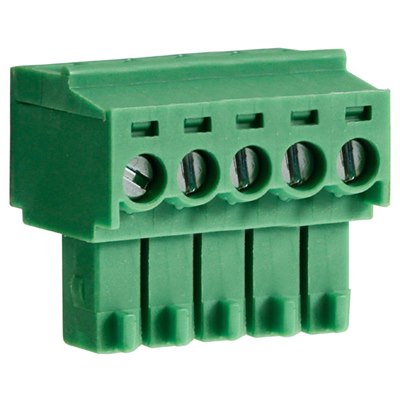

CTB92HD/5 5 pole terminal block 3.5mm
by CamdenBoss
CamdenBoss CTB92HD series pluggable female rising clamp terminal blocks
for use with 3.5mm pluggable headers (CTB93VD & CTB93HD).
View product specifications
for use with 3.5mm pluggable headers (CTB93VD & CTB93HD).
- Horizontal body style
- Screw termination
- M2 steel captive screws
- Pins spacing 3.5mm
- Current rating 10A 200VAC
- Tinned phosphor bronze contact material
- UL94V-0 flame retardant polarised mouldings
- Cable size 0.2-1.0mm²
- Guided pin alignment
- CUL, UL, VDE and CE approved
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 714-305 |
|---|---|
|
Type
|
CTB92HD/5 5 pole |
