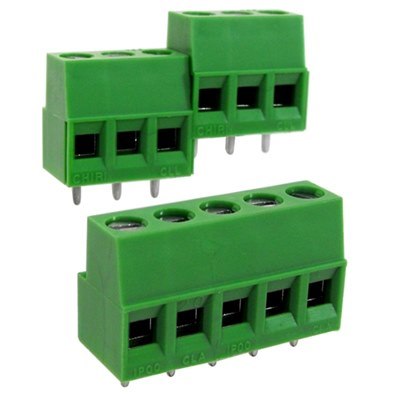

710-325 CTB0100/5 5 Way 5mm
by CamdenBoss
- 2 & 3 pole double Interlocking mechanism for increased strength
- 4-12 pole solid block end stackable
- Moulded in green UL94-V0 flame retardant PA
- Professional rising clamp terminals
- 0.2-4.0mm2 (30-12AWG) solid cable
- 0.2-2.5mm2 (30-12AWG) stranded cable
- Guided pin alignment
- Captive screws
- UL=14A/300V, VDE&IMQ=24A/250V
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 710-325 |
|---|---|
|
Type
|
CTB0100/5 5 way 5mm |
|
Dimensions LxWxH (mm)
|
25x9.8x13.8 |
