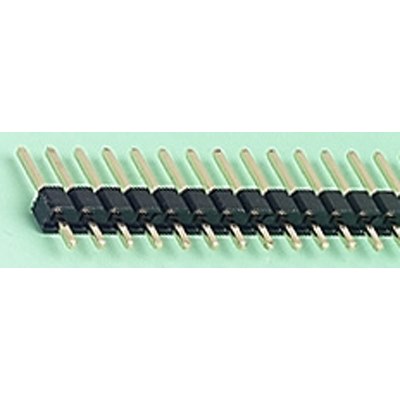

36 way Pin Header Single Row 210-71-36GB01
by Pinrex
Single Row (Square) Pin Headers suitable for use with Female Headers, Housings and Jumper links. (order codes 710-240 to 710-250).
Single Row pin out, lengths from 2 way to 40 way, easily cut into smaller lengths.
All pins are on a 2.54mm/0.1" spacing, and the PCB connectors are end and side stackable.
Contact Rating: 3A
Insulation Resistance: 500MΩMin at DC 500v
Contact Resistance: 20mΩMax at DC 100mA
Operating Temperature: -40°C to 105°C
Contact Pin: Gold Plated Brass
View product specifications
Single Row pin out, lengths from 2 way to 40 way, easily cut into smaller lengths.
All pins are on a 2.54mm/0.1" spacing, and the PCB connectors are end and side stackable.
Contact Rating: 3A
Insulation Resistance: 500MΩMin at DC 500v
Contact Resistance: 20mΩMax at DC 100mA
Operating Temperature: -40°C to 105°C
Contact Pin: Gold Plated Brass
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 710-360 |
|---|---|
|
Type
|
36 way Pin Header Single Row 210-71-36GB01 |
