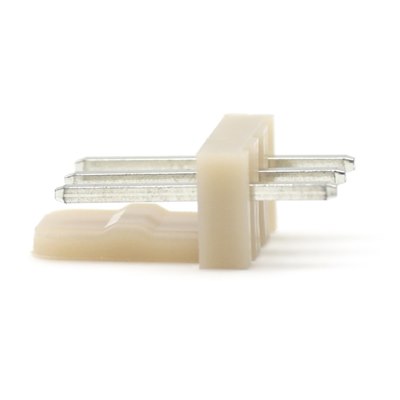

15 way 2.54mm straight pin header
by Pinrex
Modular 2.54mm (0.1") PCB connector system consisting of end-stackable socket connectors utilising crimp terminals, and which mate with PCB mounting pin headers (straight or 90°).
The crimp terminals incorporate double cantilever contacts, and the pin headers incorporate a friction lock.
Wire acceptance range AWG22-AWG30 (0.055-0.336mm)
Current Rating 3A
Housing: UL94V-2
View product specifications
The crimp terminals incorporate double cantilever contacts, and the pin headers incorporate a friction lock.
Wire acceptance range AWG22-AWG30 (0.055-0.336mm)
Current Rating 3A
Housing: UL94V-2
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 710-635 |
|---|---|
|
Description
|
15 way straight pin header - Pinrex 742-71-15TW010 |
