TX6000 Graphical Time Domain Reflectometer

Brand
Scroll Down for Pricing Options
TX6000 Graphical TDR Cable Fault Locator
Roll over or select images to enlarge

TX6000 Graphical Time Domain Reflectometer

Brand
Scroll Down for Pricing Options

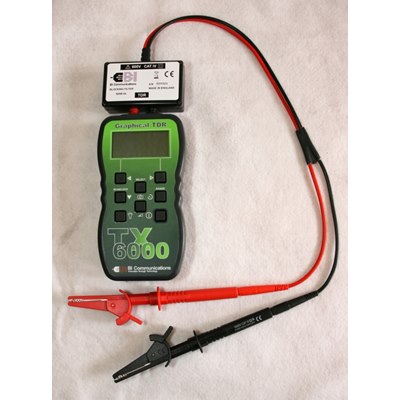

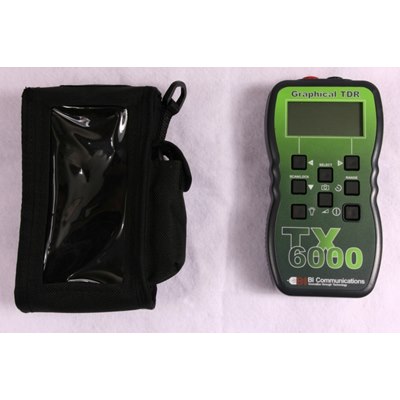

The TX6000 is a hand held Time Domain Reflectometer with 11 range scales covering the range of 0-6000 meters, with a 7 mater first range scale and a 0. meter dead zone near and far end faults are clearly displayed on the 128x64 pixel back light Liquid Crystal Display.

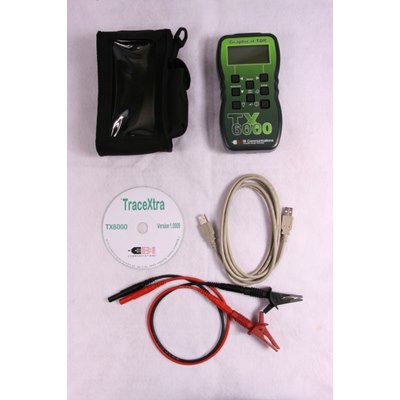

USB 2.0 interface with Windows compatible software ' TraceXtra' gives the user the option to download and analyse saved traces to a windows PC. The interface allows the user to upload saved traces from a PC hard disk to the unit. New firmware upload gives the facility to update the unit with recent additions.

Designed for locating and identifying faults on all metallic cables with two or more insulated conductors. The TX6000 has impedance matched circuits for 25, 50, 75 and 100ohms, with velocity of propergation setting from 1-99%( or feet , meters, micro second equivalents) will cover the range of power, data, communication and CCTV cables.

Housed In a rugged IP54 rated ABS enclosure and weighing 12 ounces , the TX6000 is suitable for outside use.

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 375-541
Description
TX6000 Cable Fault Locator
