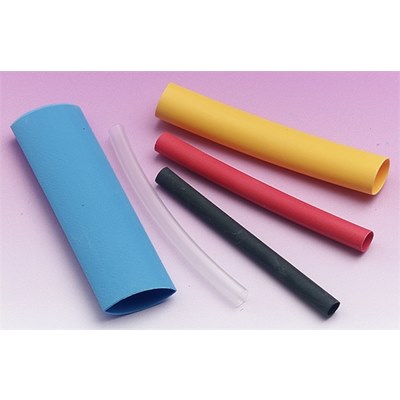

9.5mm Sleeving Yellow Dia 1.2m
by Shrinktek
Highly flexible flame-retardant polyolefin tubing which when heated to 100°C and above, will shrink in a ratio of 2:1.
Resistant to acids, alkali, fuel and oil.
Suitable for general insulation, protection and identification; and particularly for industrial cable harness work.
Nominal diameters shown are before shrinking.
RoHS compliant.
Supplied in 1.2metre lengths.
Military: MIL-1-23053/5, Classes 1, 2 and 3 MIL-R-46846 Type V
AMS: 3636 Class 1 – 3637 Class 2 3587
Nasa: MSFC 2764: Class 1 – Class 2
MOD: DEF standard 59 - 97 1A
View product specifications
Resistant to acids, alkali, fuel and oil.
Suitable for general insulation, protection and identification; and particularly for industrial cable harness work.
Nominal diameters shown are before shrinking.
- Continuous operation from –55°C to +135°C with short duration capability to +300°C
RoHS compliant.
Supplied in 1.2metre lengths.
Military: MIL-1-23053/5, Classes 1, 2 and 3 MIL-R-46846 Type V
AMS: 3636 Class 1 – 3637 Class 2 3587
Nasa: MSFC 2764: Class 1 – Class 2
MOD: DEF standard 59 - 97 1A
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 780-434 |
|---|---|
|
Colour
|
Yellow |
|
Nom. dia. (mm)
|
9.5 |
