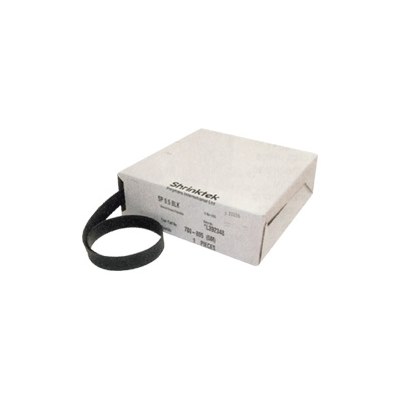

Heatshrink sleeving 2:1 Mini-Reels
by Shrinktek
Highly flexible flame-retardant polyolefin tubing to MIL-1-23053/5 which when heated to 100°C and above, will shrink in a ratio of 2:1. Flame retardant to UL224-VW1 (except clear).Resistant to acids, alkali, fuel and oil. Suitable for general insulation, protection and identification; and particularly for industrial cable harness work.
View product specifications
Nominal diameters shown are before shrinking.
Operating temperature range: -55°C to +135°C
Dielectric strength: 20kV/mm min.
Supplied on handy dispenser mini-reels.
Colour Black (Other colours available to order)
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 780-799 | 780-800 | 780-801 | 780-802 | 780-803 | 780-804 | 780-805 | 780-806 | 780-807 | 780-808 |
|---|---|---|---|---|---|---|---|---|---|---|
|
Colour
|
Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
|
Nom. dia.(mm)
|
1.2 | 1.6 | 2.4 | 3.2 | 4.8 | 6.4 | 9.5 | 12.7 | 19.0 | 25.4 |
|
Reel length
|
12m | 12m | 11m | 11m | 10m | 9m | 7m | 6m | 5m | 3.5m |
