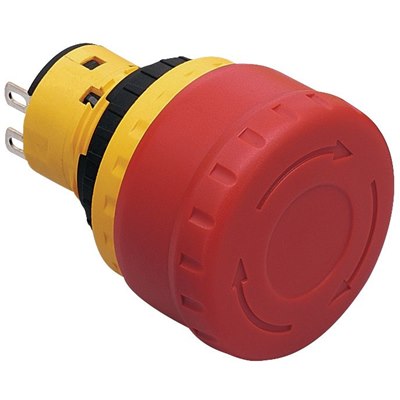

IDEC XA 16mm Emergency Stop Switch 29mm Mushroom,
IDEC XA1E-BV313R
An 16mm E-Stop Switch featuring a 29mm Mushroom Head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
1NO-3NC contacts 16mm panel hole diameter IP65 protection level Screw terminals 29mm mushroom head 5A 300VAC rating RU, TUV, CE, CCC certification
View product specifications
An 16mm E-Stop Switch featuring a 29mm Mushroom Head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 801-025 |
|---|---|
|
Manuf. Part No.
|
XA1E-BV313R |
