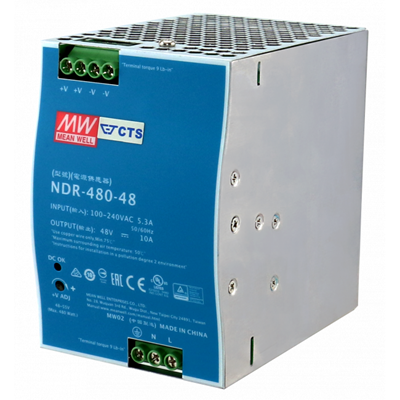

Mean Well NDR-480-48 48vdc 10A Power Supply
- Universal AC input / Full range
- 1 Output
- Output Power: 480W
- Output Voltage: 48vdc
- Output Current: 10A
- Input Voltage: 90VAC to 265 VAC, 127VDC to 370VDC
- DIN Rail mounting
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment ) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- 3 year warranty
- Built in active PFC function
- Length: 128.5mm
- Width: 85.5mm
- Height: 125.2mm
- Isolation Voltage: 3kV
- Weight: 1.5Kg
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 380-045 |
|---|---|
|
Voltage (VDC)
|
48v |
|
Power rating
|
480W |
|
Manuf. code
|
NDR-480-48 |
