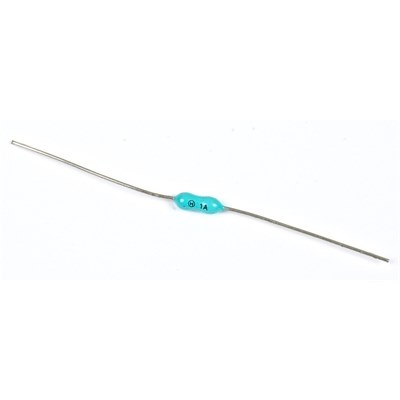

Axial Fuses - CF2470
Length: 6.8mm (body) 63mm overall. Temp range: -55° to +125°C
Body dia: 2.4mm. Lead dia: 0.6mm.
RoHS compliant
Minimum order quantity 10pcs.
View product specification >
| Order Code | Description | Price £ each | Add to basket | ||
| 10+ | 100+ | 500+ | |||
616-003
|
Axial fuse Q/B 80mA | £0.1500 | £0.1200 | £0.1100 |
Qty
|
|
616-005
|
Axial fuse Q/B 100mA | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-010
|
Axial fuse Q/B 125mA | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-015
|
Axial fuse Q/B 250mA | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-020
|
Axial fuse Q/B 500mA | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-025
|
Axial fuse Q/B 1A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-030
|
Axial fuse Q/B 1.5A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-032
|
Axial fuse Q/B 2A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-035
|
Axial fuse Q/B 2.25A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-040
|
Axial fuse Q/B 3A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-043
|
Axial fuse Q/B 3.5A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-045
|
Axial fuse Q/B 5A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-047
|
Axial fuse Q/B 7A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-050
|
Axial fuse Q/B 10A | £0.1200 | £0.1000 | £0.0900 |
Qty
|
|
616-062
|
Axial fuse T/D 125mA | £0.2600 | £0.1900 | £0.1700 |
Qty
|
|
616-065
|
Axial fuse T/D 250mA | £0.2600 | £0.1900 | £0.1700 |
Qty
|
|
616-066
|
Axial fuse T/D 375mA | £0.2200 | £0.1500 | £0.1350 |
Qty
|
|
616-068
|
Axial fuse T/D 500mA | £0.2200 | £0.1500 | £0.1350 |
Qty
|
|
616-069
|
Axial fuse T/D 750mA | £0.2200 | £0.1500 | £0.1350 |
Qty
|
|
616-070
|
Axial fuse T/D 1A | £0.1600 | £0.1200 | £0.1100 |
Qty
|
|
616-072
|
Axial fuse T/D 1.5A | £0.1600 | £0.1200 | £0.1100 |
Qty
|
|
616-073
|
Axial fuse T/D 2A | £0.1600 | £0.1200 | £0.1100 |
Qty
|
|
616-074
|
Axial fuse T/D 2.5mA | £0.1600 | £0.1200 | £0.1100 |
Qty
|
|
616-076
|
Axial fuse T/D 3A | £0.1600 | £0.1200 | £0.1100 |
Qty
|
|
616-077
|
Axial fuse T/D 4A | £0.1600 | £0.1200 | £0.1100 |
Qty
|
|
616-078
|
Axial fuse T/D 5A | £0.1600 | £0.1200 | £0.1100 |
Qty
|
Specification
| Product | Rating at 125Vac | Type |
| 616-003 | 80mA | Quickblow |
| 616-005 | 100mA | Quickblow |
| 616-010 | 125mA | Quickblow |
| 616-015 | 250mA | Quickblow |
| 616-020 | 500mA | Quickblow |
| 616-025 | 1A | Quickblow |
| 616-030 | 1.5A | Quickblow |
| 616-032 | 2A | Quickblow |
| 616-035 | 2.25A | Quickblow |
| 616-040 | 3A | Quickblow |
| 616-043 | 3.5A | Quickblow |
| 616-045 | 5A | Quickblow |
| 616-047 | 7A | Quickblow |
| 616-050 | 10A | Quickblow |
| 616-062 | 125mA | Time delay |
| 616-065 | 250mA | Time delay |
| 616-066 | 375mA | Time delay |
| 616-068 | 500mA | Time delay |
| 616-069 | 250mA | Time delay |
| 616-070 | 1A | Time delay |
| 616-072 | 1.5A | Time delay |
| 616-073 | 2A | Time delay |
| 616-074 | 2.5A | Time delay |
| 616-076 | 3A | Time delay |
| 616-077 | 4A | Time delay |
| 616-078 | 5A | Time delay |
