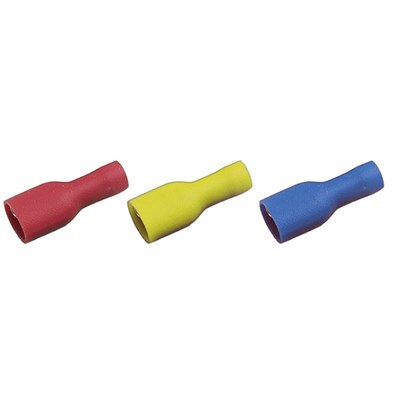

Fully Insulated Fem. Push-on Receptacles

Fully insulated female push-on terminals with easy cable entry guide which eliminates flared wire strands during cable insertion. Copper terminals to BS6017 with bright electrotinned finish to BS1872, which prevents oxidisation. Insulators are coloured vinyl. All terminals are UL & CSA approved and have full compliance to BS4579.
Current ratings quoted are at 415V AC @ 32°C.

Insulation Colour:

Red - Wire size 0.25-1.65 mm² (AWG22-16)
Blue - Wire size 1.04-2.63 mm² (AWG16-14)
Yellow - Wire size 2.63-6.64 mm² (AWG12-10)

All Crimp Terminals supplied in packs of 100

RoHS compliant

View product specification >

Order Code	Description	Price £ per pack 100			Add to basket
Order Code	Description	1+	10+	25+	Add to basket
707-130	Pack 100 Ins push-on 12A Red 4.8x0.8	£5.4000	£4.6500	£4.1500	Qty
707-135	Pack 100 Ins push-on 12A Red 6.3x0.8	£5.9500	£5.1000	£4.5500	Qty
707-140	Pack 100 Ins push-on 16A Blue 4.8x0.8	£5.8500	£5.0000	£4.4500	Qty
707-145	Pack 100 Ins push-on 16A Blue 6.3x0.8	£6.1000	£5.2500	£4.2000	Qty
707-147	Pack 100 Ins push-on 20A Yellow 6.3x0.8	£8.8500	£7.6000	£6.7500	Qty

Specification

Product	Type	Tab Size (mm)
707-130	Red 12 Amp	4.8x0.8
707-135	Red 12 Amp	6.3x0.8
707-140	Blue 16 Amp	4.8x0.8
707-145	Blue 16 Amp	6.3x0.8
707-147	Yellow 20 Amp	6.3x0.8
