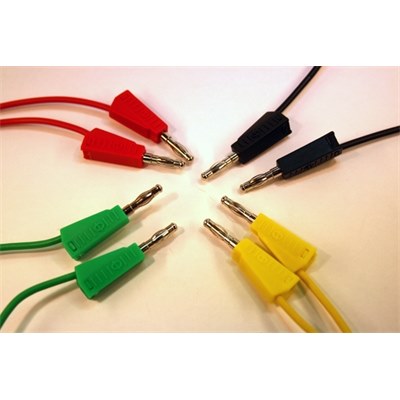

4mm Stackable Lead Green - 100cm
by JPR
Test leads with 4mm (banana) plugs at each end, available in 5 colours and in 3 different lengths.
The plugs are stackable with a cage spring to provide secure connection, and incorporate a socket
at the rear to accomodate an additional 4mm plug. Body and spring are nickel plated machined brass,
insulated covers manufactured from ABS plastic.
View product specifications
The plugs are stackable with a cage spring to provide secure connection, and incorporate a socket
at the rear to accomodate an additional 4mm plug. Body and spring are nickel plated machined brass,
insulated covers manufactured from ABS plastic.
- Cable: 0.75mm² (95/0.01mm) PVC insulated
- Plugs: Nickel plated brass body & spring
- Plug length: 44.5mm
- Voltage: 30VAC – 60VDC
- Max. current: 15A
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 778-098 |
|---|---|
|
Description
|
4mm stackable lead - green 1000mm |
